Are you looking for an oven with a spacious chamber, a strong glass viewing window, and a safety screen? Look no further than the Gallenkamp vacuum oven! This system has a cutting-edge touchscreen control system that can be customised to meet your laboratory’s specific needs.

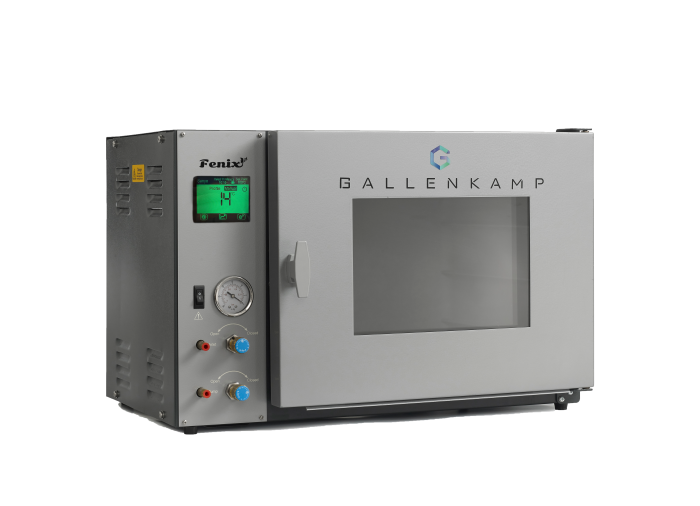

Fenix Vacuum Oven (Touchscreen Version)
We designed this oven with your experience in mind. Its exterior is made of steel and coated with a powder that’s easy to clean. Inside, the oven is lined with aluminium, fixed shelf runners, and removable shelves.
- Compact Size – 31-litre capacity
- History Display – onscreen historical trending (48 hours)
- Eight stages profile control
- Clear – Countdown timer and 24/7 real-time clock operation
- Adaptable – Manual or automatic overheat reset
- Safe – Temperature setting with over-temperature alarm indication
- Reliable – Tough steel construction, toughened glass window and polycarbonate safety screen
- Easy to use – Autotune feature and Easy-to-read Vacuum Gauge
- Personalised – Profile mode
- Flexible – export data easily to USB
Controls
The control system comprises a bespoke touchscreen user interface permitting advanced features to be turned on or off to suit bespoke heating applications tailored to customer preference. The History display allows the user to view the history of the chamber. The red trend is the set point at which the chamber works, while the green trend is the chamber’s critical temperature. The Autotune feature involves the oven’s chamber gradually increasing temperature and teaching itself the thermal errors. The Profile mode allows for multi profile control with cyclic features. You can enter a maximum of 8 unique profiles with a unique name and number of cycles.
Specifications
| Capacity | 31L |
| Temperature Range | 30°C to 200°C At Ambient Temperature Less Than 25°C |
| Power Rating – Maximum Watts | 1000 nominally at 240V |
| Shelf – WxD (mm) | 366×290 |
| No. Of Shelves Supplied | 2 |
| No. Of Shelf Positions | 3 |
| Interval Between Positions (mm) | 75 |
| Internal Dimensions HxWxD (mm) | 260x375x310 |
| External Dimensions HxWxD (mm) | 420x630x425 |
| Weight | 43kg |
| Tubing Connections | 10-12mm Bore |
| Leakage Rate (at 0.01mbar) | 10mbar/24hr (i.e. 4×10-6mbar/l/s) |
