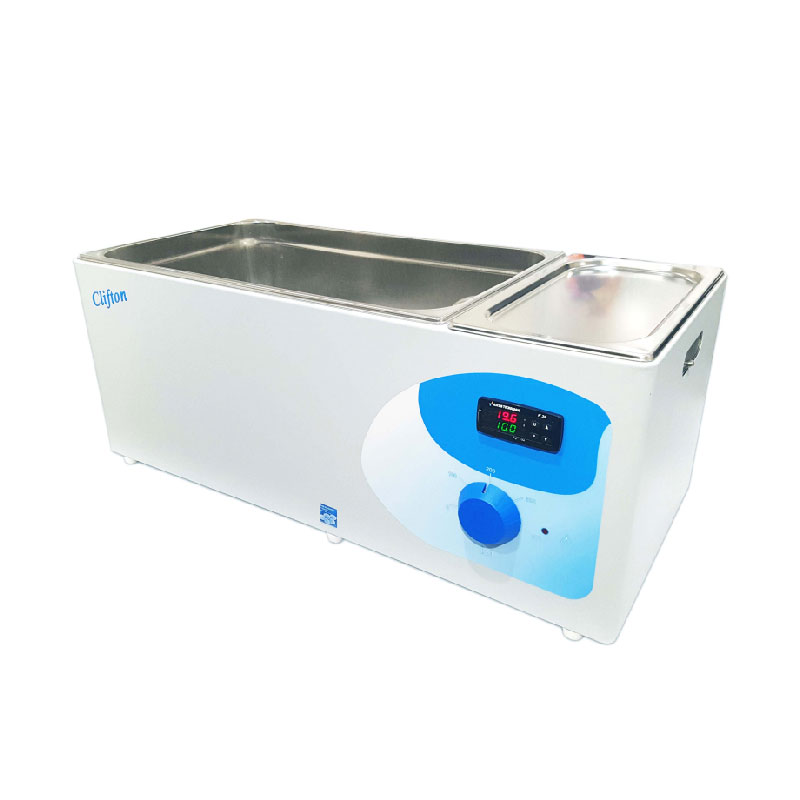

Clifton® Shaking water bath, featuring precision PID control, allows observation of set and actual temperature simultaneously. A broad range of accessory flask clips and racks ensures flexibility for routine and specialized work.
Accessory clips and racks can be mounted onto the perforated tray which fits onto the reciprocating stainless steel trolley. Flasks, micro titre plates and test-tube racks can easily be loaded and unloaded by lifting out the complete shelf. The trolley can also easily be removed for cleaning. The perforated tray is supplied as standard.
Heaters and temperature sensor are concealed under the tank and provide a clutter free working area which is easy to wipe clean. The heating footprint covers the underside of the tank and with a low mass provides rapid energy transfer, resulting in quicker heat up times and a reduction in energy consumption and improved temperature uniformity.
The shaking system is quiet in use and by removing the trolley and replacing the perforated tray, it can be used as a standard laboratory bath.
The shaker trolley is stable in use and the removable perforated shelf makes loading and unloading easy, unlike other traditional shaker baths where the whole shaker carriage has to be removed.
Clifton Shaker baths features a useful stainless steel recessed tray for standing flasks on prior to and after immersion.
Comprising of a high quality corrosion resistant stainless steel tank, with a bright clean finish, housed in a durable paint finished outer case which has good chemical resistance. Painted surfaces feature anti-bacterial finish which is a hygienic coating and actively inhibits bacterial growth.
Product Information
| Product Code | Dimensions | Capacity | Temp Control | Temp Range | Temp Alarm | Sensitivity | Uniformity | Heat Power (220-240V) | Linear shaking control | Voltage | Packing Weight |
| NE5-10D | External: 449w x 332d x 290h mm
Internal: 242w x 300d x 200h mm Perforated trolley size: 175w x 270d mm Maximum water level: 120mm above perforated trolley Minimum water level: 50mm above perforated trolley Packed: 45 x 41 x 32mm |
Capacity: 10 Litres | PID Digital, LED display showing actual and set temperature, resolution 0.1°C | Ambient + 5°C – 100°C Accessory DC1-300 provides cooling from ambient to -15°C | Under/over temperature alarm is automatically set 4°C above and 4°C below set point. | ±0.1°C @ 45°C optimal water level 75 to 120mm | ±0.1°C @ 45°C optimal water level 75 to 120mm | 800W | Shaking control 0 to 400 strokes / 0 to 200rpm – stroke length fixed 20mm. | 230V 50 – 60Hz | 14.5 kg |
| NE5-28D | External: 715w x 332d x 290h mm
Internal: 500w x 298d x 200h mm Perforated shelf/trolley size: 376w x 276d mm Maximum water level: 120mm above perforated shelf/trolley Minimum water level: 50mm above perforated shelf/trolley Packed: 80 x 43 x 33 cm |
Nominal Tank Capacity: 28 Litres | PID Digital, LED display showing actual and set temperature, resolution 0.1°C | Ambient + 5°C – 100°C Accessory DC1-300 provides cooling from ambient to -15°C | Under/over temperature alarm automatically set 4°C above and 4°C below set point. | ±0.1°C @ 45°C optimal water level 75 to 120mm | ±0.1°C @ 45°C optimal water level 75 to 120mm | 1000W | Shaking control 0 to 400 strokes / 0 to 200rpm – stroke length variable up to 40mm. | 230V 50-60Hz | 22.5kg |
| NE5-28DT | External: 715w x 332d x 290h mm
Internal: 500w x 298d x 200h mm Perforated shelf/trolley size: 376w x 276d mm Maximum water level: 120mm above perforated shelf/trolley Minimum water level: 50mmabove perforated shelf/trolley Packed: 80 x 43 x 33 cm |
Nominal Tank Capacity: 28 Litres | PID Digital, LED display showing actual and set temperature, resolution 0.1°C | Ambient + 5°C – 100°C Accessory DC1-300 provides cooling from ambient to -15°C | Under/over temperature alarm automatically set 4°C above and 4°C below set point. | ±0.1°C @ 45°C optimal water level 75 to 120mm | ±0.1°C @ 45°C optimal water level 75 to 120mm | 1000W | Shaking control 0 to 400 strokes / 0 to 200rpm – stroke length variable up to 40mm. | 230V 50-60Hz. |
22.5kg
|
| NE5-28 | External: 715w x 332d x 290h mm
Internal: 500w x 298d x 200h mm Perforated shelf/trolley size: 376w x 276d mm Maximum water level: 120mm above perforated shelf/trolley Minimum water level: 50mm above perforated shelf/trolley Packed: 80 x 43 x 33 cm |
Nominal Tank Capacity: 28 Litres | Electronic temperature control, analogue dial pointer graduated in 5°C divisions | Ambient + 5°C – 99°C | ±0.2°C @ 45°C optimal water level 75 to 120mm | ±0.1°C @ 45°C optimal water level 75 to 120mm | 1000W | Shaking control 0 to 400 strokes / 0 to 200rpm – stroke length variable up to 40mm | 230V 50-60Hz. | 22.5 kg |
Safety Features
Thermal cut out fitted in the heater. Bath fitted with non-slip rubber feet.
The under/over temperature alarm is automatically set 4°C above and 4°C below set temperature. When in alarm condition the indicator illuminates and the actual bath temperature is shown. If bath is over temperature heating is switched off. Once liquid temperature has fallen or risen above/below the alarm setting, the indicator clears and actual bath temperature is shown and the control resumes.
Controls
Featuring a bold LED display of measured temperatures in real-time and in increments of ±0.1°C, using a precision PID temperature controller. Temperature settings are retained in the memory, even after the unit has been turned off.
Easy to use controls, utilizing touch keypads for setting temperature values.
Features auto setting temperature alarm protecting your work at set temperature.
Every unit undergoes a factory calibration at two temperatures for validation.
Shaking speed control is by analogue dial pointer graduated in 100rpm divisions from 0 – 380rpm. Fixed stoke length 20mm.
Features and Benefits
1. The reciprocating trolley accepts a wide number of accessory universal flask clips, which can be made up in any number of specific ways for your applications e.g. flask clips, test tube racks and micro titre trays.
2. Shaking Clifton water bath designed for immersion of flasks, bottles and racks in a highly stable temperature environment throughout the water bath.
3. The trolley can be easily removed and cleaned.
4. Quiet running shaker mechanism and drive motor.
5. Bold temperature control panel ensuring set and actual water temperature can be easily seen.
6. Three-year warranty and comprehensive customer support.
7. Before leaving our factory each water bath has a unique serial number, electrically tested for safety at final inspection and a test certificate enclosed in rear of the instruction book.
8. To verify the performance of the temperature control system every unit undergoes a factory calibration adjusting control to known traceable values.
9. The control panel and painted surfaces feature “anti-bacterial technology” which inhibits bacterial growth, improving hygiene requirements as demanded by clinical and laboratory environments. The Clifton range features easy to clean surfaces and finishes that are resistant to routine and efficient disinfections. The efficacy of the finish is maintained over time, as the anti-bacterial agent is integral within the paint finish.
