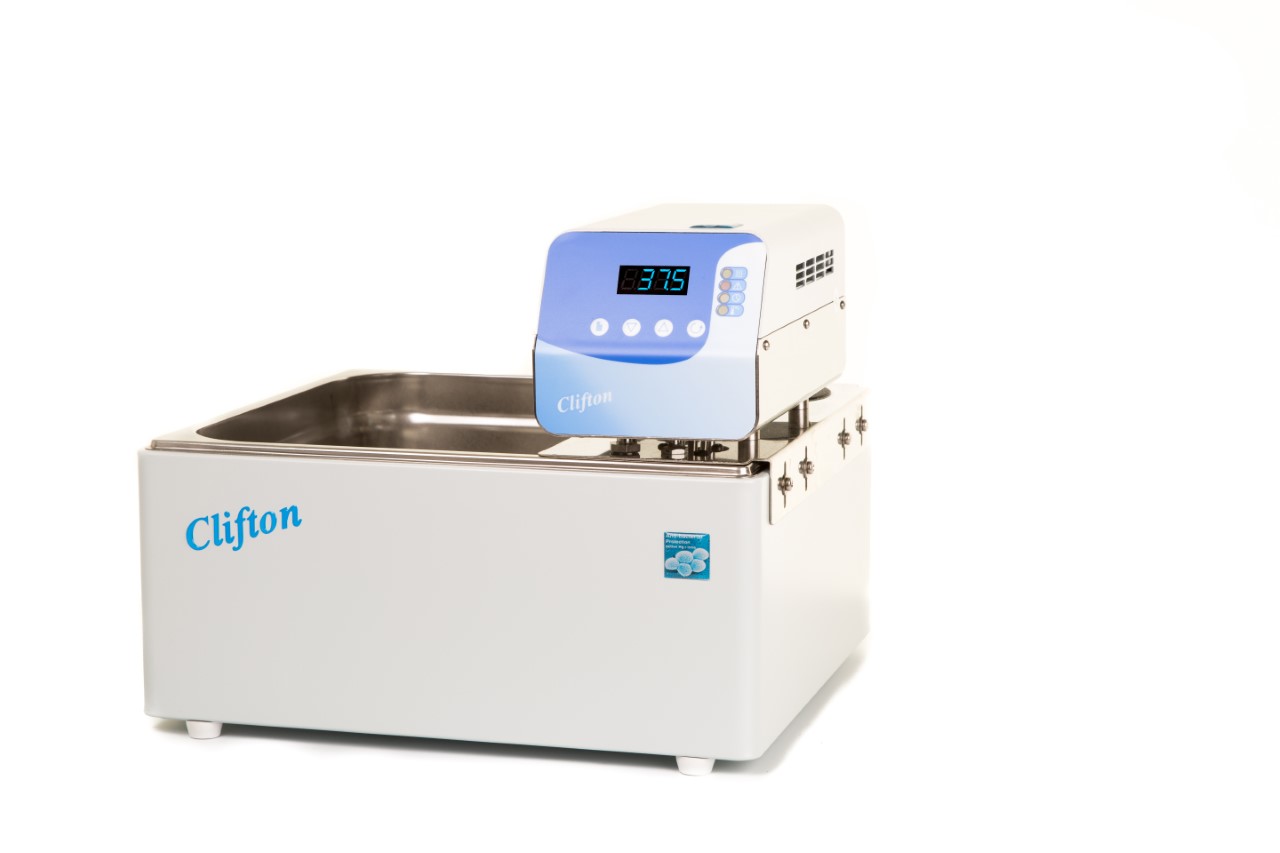

    Stirred Clifton water baths feature a digital PID temperature controller and are designed for immersion of flasks, bottles, racks in an accurate temperature environment throughout the water bath.

    The stainless steel tank is housed in a sturdy outer case and is supplied complete with a stainless steel shelf which provides even water circulation and temperature stability.

    The thermostirrer is manufactured from stainless steel for durability. Painted surfaces feature a tough anti-bacterial finish with good chemical resistance. Easy to use controls which are wipe clean and have an anti-bacterial finish. Immersed components are corrosion resistant. The efficient stirrer is quiet in use and provides excellent temperature stability. Indication of heating, over temperature alarm and timer running.

    When a low liquid level is detected a “FILL” message automatically appears and heating is suspended. Once refilled, heating is restored and temperature control resumes automatically. Over and under temperature alarms automatically protect samples in the water bath

    Information

    Safety Features

    Features a low liquid level float switch, which ensures heating, is switched off if the liquid falls below the recommended level – display will show “FiLL”. Heating is switched off but stirring continues. To reset carefully top up the liquid to the recommended level.

    The under/over temperature alarm is automatically set 4˚C above and 4˚C below set temperature. When in alarm condition the indicator illuminates and actual bath temperature is shown. If bath is over temperature both heating and stirring are switched off. Once liquid temperature has fallen or risen above/below the alarm setting, the indicator clears and actual bath temperature is shown.

    Controls

    Featuring a bold LED display of measured temperatures in real-time and in increments of ±0.1°C, using a precision PID temperature controller. Setting for water temperature only or combination of temperature and time. Timer setting variable in 1-minute increments from 00:01 [hh:mm] to 99:59 [hh:mm] with “end” message on completion of the timed period. Time and temperature settings are retained in the memory, even after the unit has been turned off.

    Easy to use controls, utilising touch keypads for setting time and temperature values with indicators for heating, over temperature alarm and timer.

    The heater unit can be set to run at a set temperature or commence the timer once the water reaches set temperature.

    Features auto setting over and under temperature alarm protecting your work at set temperature.

    Every unit undergoes a factory calibration at two temperatures for validation.

    Features and Benefits

    1. Stirred Clifton water baths feature a digital PID temperature controller and are designed for immersion of flasks, bottles and racks in an accurate temperature environment throughout the water bath.
    2. Efficient water movement and temperature control provides accurate temperature stability throughout the water bath.
    3. Three-year warranty and comprehensive customer support.
    4. A broad range of accessories is available to suit a wide range of applications.
    5. Before leaving our factory every water bath is identified with a unique serial number and undergoes a factory calibration adjusting control to known traceable value, electrically tested for safety at final inspection and a test certificate enclosed in rear of the instruction book.
    6. Thermostirrer control panel and painted surfaces feature “anti-bacterial technology” which inhibits bacterial growth, improving hygiene requirements as demanded by clinical and laboratory environments. The Clifton range features easy-to-clean surfaces and finishes that are resistant to routine and efficient disinfections. The efficacy of the finish is maintained over time, as the anti-bacterial agent is integral within the paint finish.

    Product Information



    Product Code  Dimensions Capacity Temp Control Temp Range Temp Alarm Sensitivity Uniformity Timer Pump capacity and pressure Pump connection ports Heater Power (220-240V) Voltage Packed Weight
    NE4-8P External: 271w x 332d x 170h mm

    Thermocirculator additional 120mm to bath height

    Internal: 129w x 300d x 150h mm

    Water level: Maximum 130mm shelf fitted working depth 85mm

    Packed: 45 x 41 x 32mm

    Nominal Tank Capacity: 8 Litres PID Digital, 4 digit LED display, resolution 0.1°C Ambient +5°C – 99°C Accessory DC1-300 provides cooling from ambient to -20°C Under/over temperature alarm is automatically set 4˚C above and 4˚C below set point. ±0.05°C ±0.01°C Variable 00:01 to 99:59 hh:mm Activates at set temperature. End timed period, audible buzzer and end message 10 litres/min – 150mbar Pressue drop can occur with pipe height, length, bore, bends and liquid temperatures below ambient Inlet and outlet ports take 4mm bore x 6mm o/d tubing 1250W 120V or 230V models 50-60Hz 9.2 kg
    NE4-14P External: 361w x 332d x 170h mm

    Thermocirculator additional 120mm to bath height

    Internal: 219w x 298d x 150h mm

    Water level: Maximum 130mm shelf fitted working depth 85mm

    Packed: 45 x 41 x 32 cm

    Nominal Tank Capacity: 14 Litres PID Digital, 4 digit LED display, resolution 0.1°C Ambient +5°C – 99°C Accessory DC1-300 provides cooling from ambient to -20°C Under/over temperature alarm is automatically set 4˚C above and 4˚C below set point. ±0.05°C ±0.01°C Variable 00:01 to 99:59 hh:mm Activates at set temperature. End timed period, audible buzzer and end message 10 litres/min – 150mbar Pressue drop can occur with pipe height, length, bore, bends and liquid temperatures below ambient Inlet and outlet ports take 4mm bore x 6mm o/d tubing 1250W 120V or 230V models 50-60Hz 10kg
    NE4-22P External: 537w x 332d x 170h mm

    Internal: 395w x 298d x 150h mm

    Water level: Maximum 130mm shelf fitted working depth 85mm

    Packed: 62 x 41 x 37 cm

    Nominal Tank Capacity: 22 Litres PID Digital, 4 digit LED display, resolution 0.1°C Ambient +5°C – 99°C Accessory DC1-300 provides cooling from ambient to -20°C Under/over temperature alarm is automatically set 4˚C above and 4˚C below set point. ±0.05°C ±0.01°C Variable 00:01 to 99:59 hh:mm Activates at set temperature. End timed period, audible buzzer and end message 10 litres/min – 150mbar Pressue drop can occur with pipe height, length, bore, bends and liquid temperatures below ambient Inlet and outlet ports take 4mm bore x 6mm o/d tubing
    1250W
    120V or 230V models 50-60Hz 12 kg
    NE4-28P External: 537w x 332d x 290h mm

    Thermocirculator additional 120mm to bath

    height Internal: 395w x 298d x 200h mm

    Water level: Maximum 180mm shelf fitted working depth 135mm

    Packed: 62 x 41 x 37 cm

    Nominal Tank Capacity: 28 Litres PID Digital, 4 digit LED display, resolution 0.1°C Ambient +5°C – 99°C Accessory DC1-300 provides cooling from ambient to -20°C Under/over temperature alarm is automatically set 4˚C above and 4˚C below set point. ±0.05°C ±0.01°C Variable 00:01 to 99:59 hh:mm Activates at set temperature. End timed period, audible buzzer and end message 10 litres/min – 150mbar Pressue drop can occur with pipe height, length, bore, bends and liquid temperatures below ambient Inlet and outlet ports take 4mm bore x 6mm o/d tubing 1250W 120V or 230V models 50-60Hz 14 kg
    NE4-56P External: 660w x 540d x 290h mm

    Thermocirculator additional 120mm to bath

    height Internal: 490w x 500d x 200h mm

    Water level: Maximum 180mm shelf fitted working depth 135mm

    Packed: 69 x 47 x 79 cm

    Nominal Tank Capacity: 56 Litres PID Digital, 4 digit LED display, resolution 0.1°C Ambient +5°C – 99°C Accessory DC1-300 provides cooling from ambient to -20°C Under/over temperature alarm is automatically set 4˚C above and 4˚C below set point. ±0.2°C ±0.02°C Variable 00:01 to 99:59 hh:mm Activates at set temperature. End timed period, audible buzzer and end message 10 litres/min – 150mbar Pressue drop can occur with pipe height, length, bore, bends and liquid temperatures below ambient Inlet and outlet ports take 4mm bore x 6mm o/d tubing 2000W 230V models 50-60Hz 23 kg
