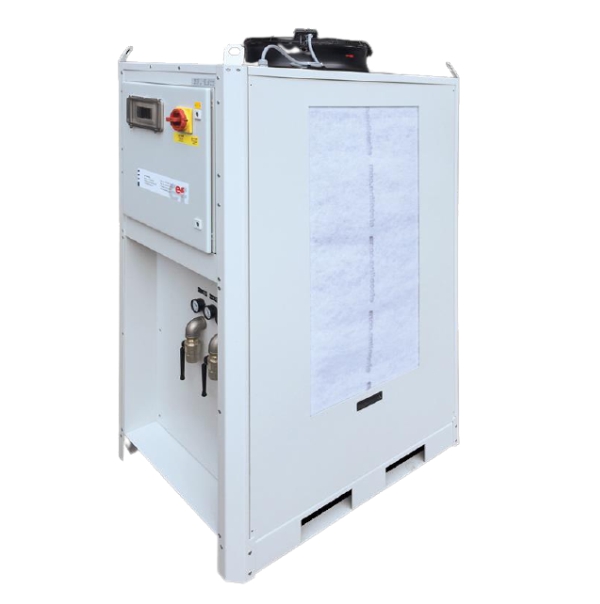

The W-series chillers are robust, dependable workhorses that provide a reliable supply of process coolant at constant temperature and pressure.
Combining a a high efficiency, corrosion resistant plate heat exchanger, compressor and a non-ferrous pump, the W-series is suitable for both glycol and deionised water.
By using R 134a refrigerant, fridge pressure is minimised and therefore allows operation in ambient temperatures as high as 55 ºC.
All Chillers in theW-series range incorporate an antifreeze thermostat to protect the plate heat exchanger and integrated pressure switches to protect the fridge circuit against high and low pressure.
Housings are made from galvanized steel and externally coated to provide corrosion protection against the harshest of environments.
Standard Features:
- Visual water level
- High efficiency plate heat exchanger
- Corrosion resistant coolant circuit
- Stainless steel coolant tank
- Thermostatic expansion valve
- Operation up to 38 C ambient (standard)
- Powder coated galvanised steel housing
- Antifreeze protection
- Plug & Play design
Additional information
| Weight | N/A |
|---|---|
| Dimensions | N/A |
| Variant | 8kW, 16kW, 24kW, 32kW, 40kW |
Specifications
| W081063 | 8kw outdoor chiller with P10, 380-420V 3phase |
| W081064 | 8kw outdoor chiller with P10, 460V 3phase 60Hz |
| W081763 | 8kw outdoor chiller with P17, 380-420V 3phase |
| W081764 | 8kw outdoor chiller with P17, 460V 3phase 60Hz |
| W082543 | 8kw outdoor chiller with P25, 380-420V 3phase |
| W082544 | 8kw outdoor chiller with P25, 460V 3phase 60Hz |
| W161763 | 16kw outdoor chiller with P17, 380-420V 3phase |
| W161764 | 16kw outdoor chiller with P17, 460V 60Hz, 3 phase |
| W162543 | 16kw outdoor chiller with P25, 380-420V 3phase |
| W162544 | 16kw outdoor chiller with P25, 460V 60Hz, 3 phase |
| W164043 | 16kw outdoor chiller with P40, 380-420V 3phase |
| W164044 | 16kw outdoor chiller with P40, 460V 60Hz, 3 phase |
| W242543 | 24kw outdoor chiller with P25, 380-420V 3phase |
| W242544 | 24kw outdoor chiller with P25, 460V 60Hz, 3 phase |
| W244043 | 24kw outdoor chiller with P40, 380-420V 3phase |
| W244044 | 24kw outdoor chiller with P40, 460V 60Hz, 3 phase |
| W248043 | 24kw outdoor chiller with P80, 380-420V 3phase |
| W248044 | 24kw outdoor chiller with P80, 460V 60Hz 3 phase |
| W324043 | 32kw outdoor chiller with P40, 380-420V 3phase |
| W324044 | 32kw outdoor chiller with P40, 460V 60Hz 3phase |
| W328043 | 32kw outdoor chiller with P80, 380-420V 3phase |
| W328044 | 32kw outdoor chiller with P80, 460V 60Hz 3phase |
| W408043 | 40kw outdoor chiller with P80, 380-420V 3phase |
| W408044 | 40kw outdoor chiller with P80, 460V 60Hz 3phase |
| W401203 | 40kw outdoor chiller with P120, 380-420V 3phase |
| W401204 | 40kw outdoor chiller with P120, 460V 60Hz 3phase |
