VS20 SynWave Maxi

Features:

  • Fewer screws – novel vertical screw-clamp technology reduces the number of screws required for set up compared to traditional large-format systems, dramatically reducing assembly time
  • No Top Tank Assembly – A built-in inner buffer chamber within the PAGE insert allows set up to be completed without inclusion of a top tank or upper buffer chamber
Category:
WHERE TO BUY
GO BACK

    Product

    Sku

    Name (required)

    Country (required)

    Company

    Email (required)

    Message

    Overview

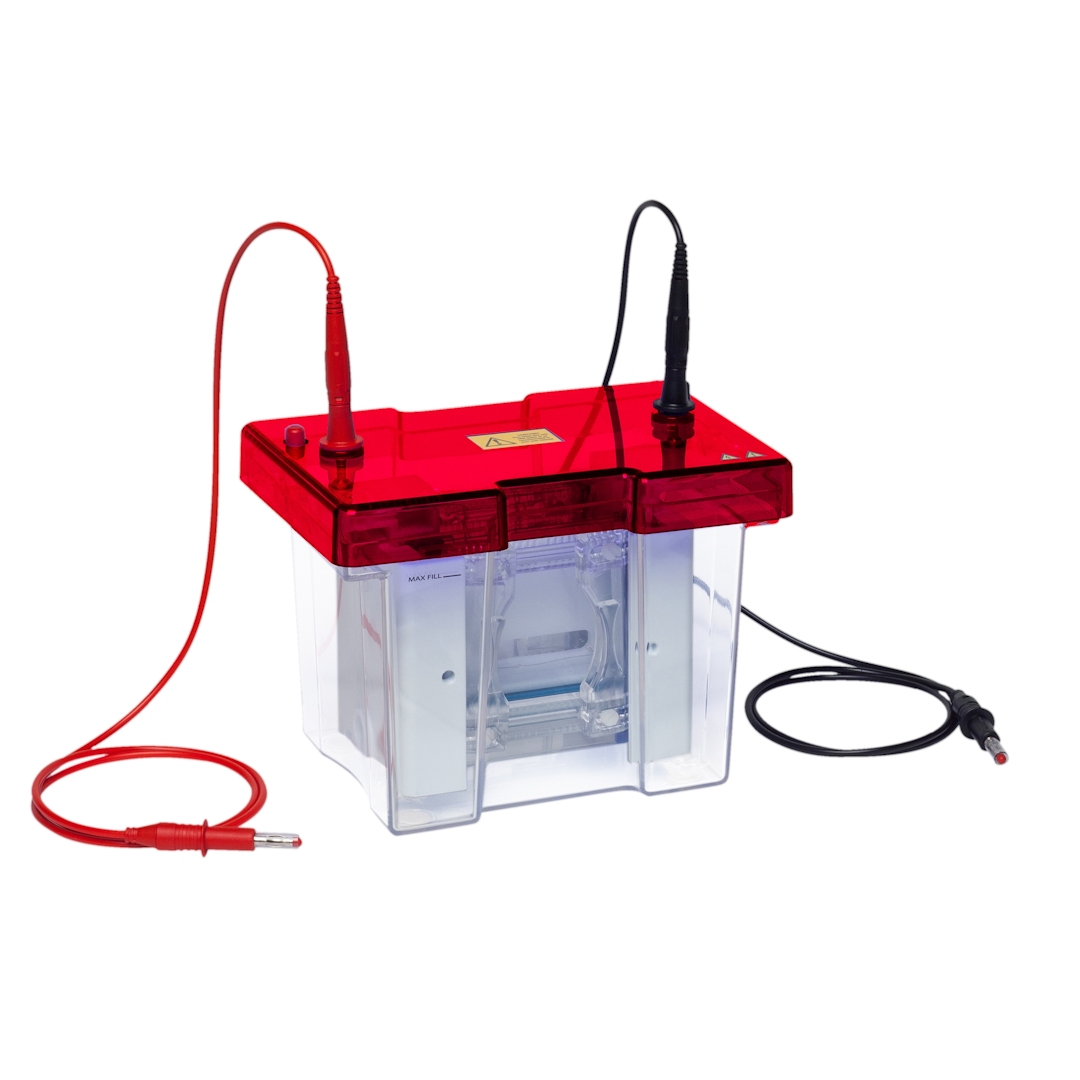

    The VS20 SynWAVE Maxi System is Syngene’s latest product innovation for large format vertical gel electrophoresis. Designed to perform a variety of separations, including first and second-dimension SDS-PAGE, native, preparative, gradient and high-resolution nucleic acid electrophoresis, plus capillary tube gel IEF and electroblotting, the VS20 SynWAVE is one of the most versatile maxi vertical systems available.

    By introducing innovative, new vertical screw-clamp technology within the PAGE insert only four screws are now necessary to secure as many 20x20cm gels. This gives the VS20 SynWAVE Maxi the selective advantage of a much faster set up speed compared to competitor products whose traditional clamping configurations require as many as 24 screws to secure just two glass plates. In addition, the SynWAVE’s vertical screw-clamp configuration distributes pressure evenly along the height of the gel rather than in the centre to eliminate plate bowing and gel compression, but still maintains a leak-proof seal during casting; while the ergonomic wave-like design of the PAGE insert aids both handling and set up.

    Whatever your requirements are the SynWAVE can be made to meet them. Regardless of whether it is running 2 or 4 gels, electroblotting, and IEF using capillary tube gels or IPG strips, all of these techniques may be performed using the same omni-purpose unit while retaining the benefits of large format electrophoresis, such as extended separation distances, greater sample throughput and superior resolution.

    Ordering Information

    Ordering Information
    Syn20WAVESYS Syn20WAVESYS system including glass plates, 2 x 24 well combs, cooling coil and casting base
    Syn20WAVESYS-CU SYN20 WAVE Maxi, 20 x 20cm dual, 2 sets of glass plates, 1mm thick bonded spacers, 2x 24 sample, 1mm thick combs, cooling coil, dummy plate; includes caster and external casting upstand
    Syn20WAVED SYN20WAVED including glass plates, 2 x 24 well combs, cooling coil



    Specifications

    SKU VS20 SynWAVED VS20 SynWAVESYS VS20 SynWAVESYS-CU
    Unit dimensions (cm) 30 x 18 x 27 30 x 18 x 27 30 x 18 x 27
    Weight (kg) 2.5 2.5 2.5
    Capacity 1 – 4 gels 1 – 4 gels 1 – 4 gels
    Maximum sample capacity 192 192 192
    Base buffer volume 1200 1200 1200
    Gel dimensions 16 x 17.5 16 x 17.5 16 x 17.5
    Maximum buffer volume (ml) 5300 5300 5300
    Includes casting base False True True
    Blotting insert SYN20BI SYN20BI SYN20BI
    2D insert SYN20DCI SYN20DCI SYN20DCI
    Includes additional caster False False True
    Plate dimensions 20 x 20 x 0.4 20 x 20 x 0.4 20 x 20 x 0.4



    Accessories

    SynPage Maxi and Mini Wide – replacement caster sealing mat
    Glass plates for the SynPage Maxi
    Spacers for the SynPage Maxi
    Combs for the SynPage Maxi
    Replacement platinum wire 0.2mm – 100cm
    SynPage Wave Maxi – casting stand without base
    SynPage Maxi and Mini Wide – casting base
    SynPage Wave Maxi – inner running module
    SynPage Wave Maxi – dummy plate, 20 x 20cm
    SynPage Wave Maxi – detachable cooling coil
    Synblot Maxi high intensity insert
    Synblot Maxi insert
    SynPage Mini Wide and Wave Maxi lid, no cables
    SynPage Wave maxi tank
