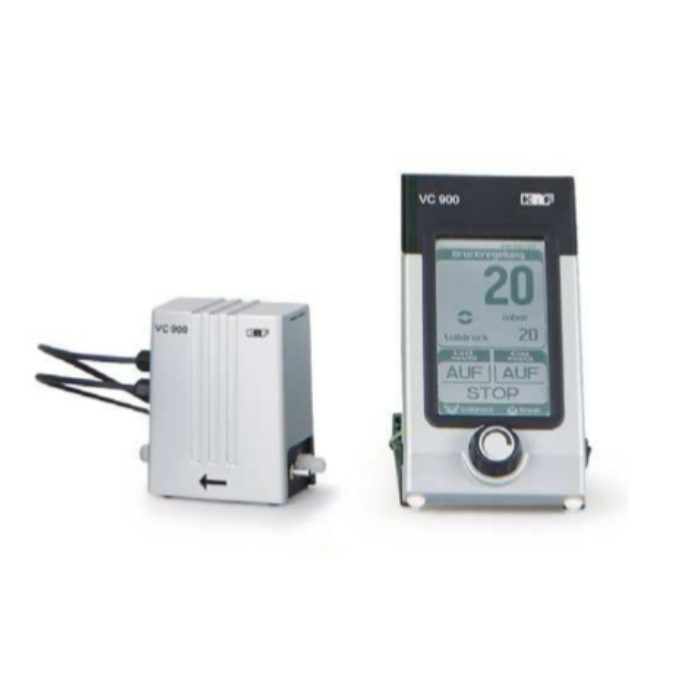

Vacuum Control Unit VC 900

Home/Vacuum Pumps/Vacuum Control Unit VC 900

Vacuum Control Unit VC 900

Easy control of vacuum application. Enables consistent, reliable vacuum repeatability.

Category:
MAKE A BUYING ENQUIRY
Register to download brochure
WHERE TO BUY
GO BACK

    Product

    Sku

    Name (required)

    Country (required)

    Company

    Email (required)

    Message

    For use with any vacuum pump (not just KNF models) when fine control of the vacuum is needed – ideal to add on to a built-in vacuum system or an existing vacuum pump without fine control features. Features a touchscreen control, pressure sensors, and a two-step-controlled valve. Optimizes lab bench space by allowing hands-free operation of the central vacuum unit.

    Additional information

    Weight 1.2 kg
    Dimensions 101 × 67 × 181 mm

    Features

    • Control of the vacuum application
    • Separate control unit with pressure sensors and two-step-controlled valve to be placed independently from the operating unit
    • Easy to use

    Technical Data - Operation Unit

    Housing Materials Plastic
    Power Supply Power cable – length 150 cm
    Protection Class Ip30
    Mains voltage [V] 100-240
    Frequency [Hz] 50/60
    Operating current [A] Max 1.0
    Dimensions W x H x D [mm] 101 x 181 x 67
    Accuracy of measurement ± 1 mbar
    Measuring limit [mbar abs.] upper: 1100 lower: 0
    Interface Mini USB

    Technical Data - Control Unit

    Dimensions 155 x 109 x 60
    Hose Connections:

    For Gas in –

    For Gas out –

    For Venting

    .

    ID10

    PVDF ID10

    PVDF ID4, Nickel Plated Brass

    Applications

    Rotary evaporation and Distillation

    Other Data

    Total Weight (kg) 1.2
    Permissible media and ambient temperature [°C] +10 to +4

    Ordering Information

    Operating Unit

    Code K06045
    Housing materials Plastic
    Power supply Power cord, cable length 150 cm
    Protection class IP 30
    Mains voltage [V] 100 – 240
    Frequency [Hz] 50/60
    Operating current [A] max. 1.0
    Dimensions W x H x D [mm] 101 x 181 x 67
    Accuracy of measurement ± 1 mbar
    Measuring limit [mbar abs.] upper: 1100
    lower: 0
    Interface Mini-USB

    Control Unit

    Dimensions W x H x D [mm] 155 x 109 x 60
    Hose connections:
    – for gas in
    – for gas out
    – for venting
    ID 10, PVDF
    ID 10, PVDF
    ID 4, nickel-plated brass

    Other Data

    Total weight [kg] 1.2
    Permissible media and ambient
    temperature [°C]
    +10 to +40
