GenLab have been designing and building water baths for over 50 years. Our Classic range are built to the highest standards and fully insulated offering economic running costs. Simple to use with thermostatic control, these baths are reliable and suit all laboratory conditions. For extra temperature range and increased energy performance, optional lids are also available

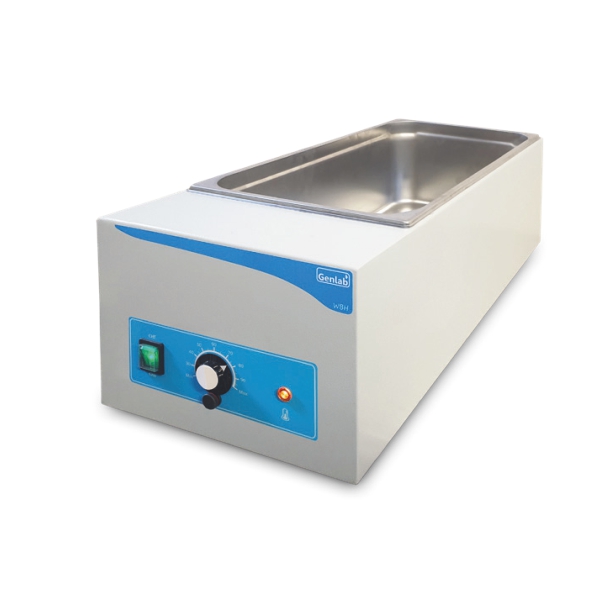

GenLab Classic Unstirred Water Bath
Unstirred Water Bath Design
The exterior is constructed from sheet steel finished in an easy clean powder coated paint. It is fitted with a stainless steel interior bath which will allow filling up to 90% total volume. Each bath is supplied with stainless steel base tray. Heating is applied to the base of the bath, which enhances temperature uniformity and optimises internal spaces.
Heating
Heated by silicone heater mats with integral safety shut down if detecting dry boil conditions. Please note these baths are not designed to dry boil so always ensure water is in the bath before you turn on.
Controls
The control system comprises of a sample thermostatic dial, with element indication. The temperature set point can be locked in place once set with the locking mechanism.
Features
- 5 sizes: 8 to 54 litres
- Temperature range 25ºC to 80ºC (without lid)
- Temperature range 25ºC to 100ºC (with lid)
- Thermostatic control
- Easy clean powder coated body
- Stainless steel tank
- Internal overheat protection
Specifications
| Genlab ref. Number |
Capacity
(approx litres) |
Internal dims.
(D x W x L cms) |
External dims.
(H x W x L cms) |
Wattage
|
Voltage
|
Weight
(kg) |
| WBH8 |
8.1
|
20 x 30 x 15
|
27 x 33 x 29
|
400 |
230
|
6
|
| WBH13 |
12.5
|
15 x 30 x 32
|
22 x 33 x 47
|
800 |
230
|
7
|
| WBH18 |
17.3
|
20 x 30 x 32
|
27 x 33 x 47
|
800 |
230
|
9
|
| WBH27 |
27
|
20 x 30 x 50
|
27 x 33 x 65
|
1200 |
230
|
11
|
| WBH54 |
53.8
|
20 x 49 x 61
|
28 x 66 x 65
|
2400 |
230
|
25
|
