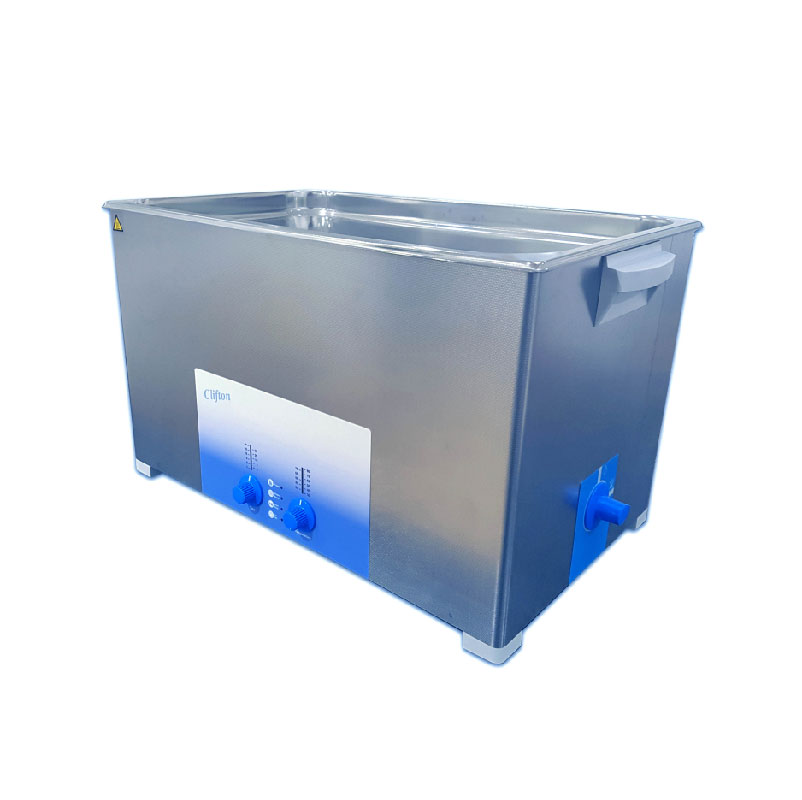

These industrial-strength ultrasonic baths are designed for demanding applications. They are also ideal for cleaning delicate or fragile components that may otherwise be damaged by mechanical cleaning.
It is supplied complete with a lid and basket.

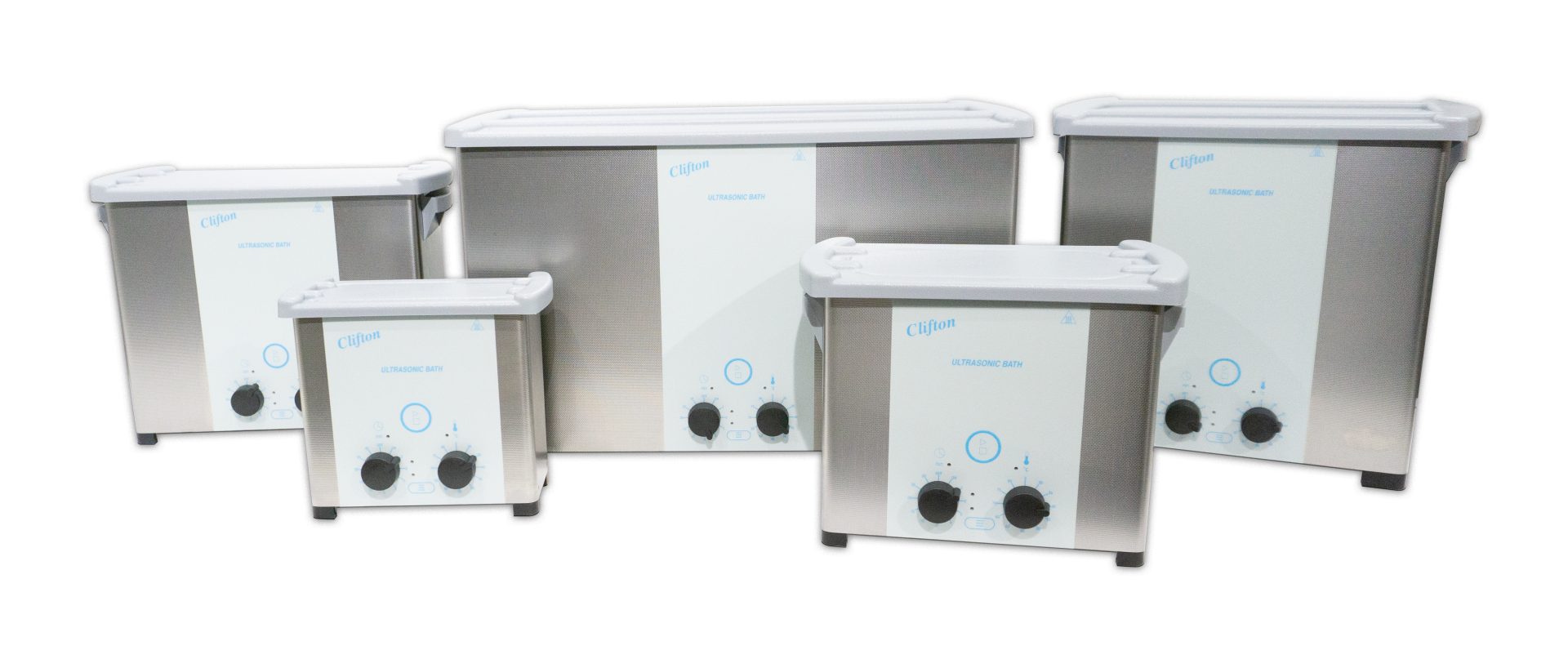

The baths are available at a capacity of 1 to 30 litres and feature eco and dynamic sonic modes. Eco offers quieter, gentler ultrasonic activity, whilst dynamic running provides vigorous cleaning.
The touchpad wipe clean control panel with rotary dials for time and temperature can be set between 30°C and 80°C in 5°C increments. The timer can be set to operate between 1-30 minutes or continuously up to 6 hours.
Clifton ultrasonic baths are constructed from high-quality stainless steel for durability. They have side lifting handles on models SW3H upwards for easy transportation.
Product Information
Product Code | Dimensions | Temp Range | Temp Control | Timer | Voltage | Ultrasonic Effective Power | Ultrasonic Peak Power | Ultrasonic Operating Frequency | Heater Power (220-240V) | Packed Weight (kg) |
SW1H | External: 205w x 120d x 180h mm
Internal: 190w x 85d x 60h mm |
30°C to 80°C in 5°C increments. | Analogue Dial Pointer | Time setting 1, 2, 3, 4, 5, 10, 15, 20, 25, 30 minutes and run time of up to 8 hours | 120V or 230V 50-60Hz | 30W | 240W | 37kHz | 60W | 2.5kg |
SW3H | External: 300w x 190d x 220h mm Internal: 235w x 135d x 100h mm |
30 – 80°C in 5°C increments. | Analogue Dial Pointer | Time setting 1, 2, 3, 4, 5, 10, 15, 20, 25, 30 minutes and run time of up to 8 hours. | 120V or 230V models 50-60Hz | 80W | 320W | 37kHz | 200W | 4kg |
SW6H | External: 310w x 160d x 270h mm Internal: 300w x 150d x 150h mm |
30 – 80°C in 5°C increments. | Analogue Dial Pointer | Time setting 1, 2, 3, 4, 5, 10, 15, 20, 25, 30 minutes and run time of up to 8 hours |
120V or 230V models 50-60Hz
|
150W | 600W | 37kHz | 400W | 6.5kg |
SW12H | External: 365w x 278d x 321h mm
Internal: 300w x 240d x 200h mm |
30 – 80°C in 5°C increments. | Analogue Dial Pointer | Time setting 1, 2, 3, 4, 5, 10, 15, 20, 25, 30 minutes and run time of up to 8 hours | 120V or 230V models 50-60Hz | 200W | 800W | 37kHz | 800W | 8kg |
SW30H | External: 570w x 350d x 320h mm
Internal: 500w x 300d x 200h mm |
30 – 80°C in 5°C increments. | Analogue Dial Pointer | Time setting 1, 2, 3, 4, 5, 10, 15, 20, 25, 30 minutes and run time of up to 8 hours | 120V or 230V models 50-60Hz | 300W | 1200W | 37kHz | 1200W | 12kg |
