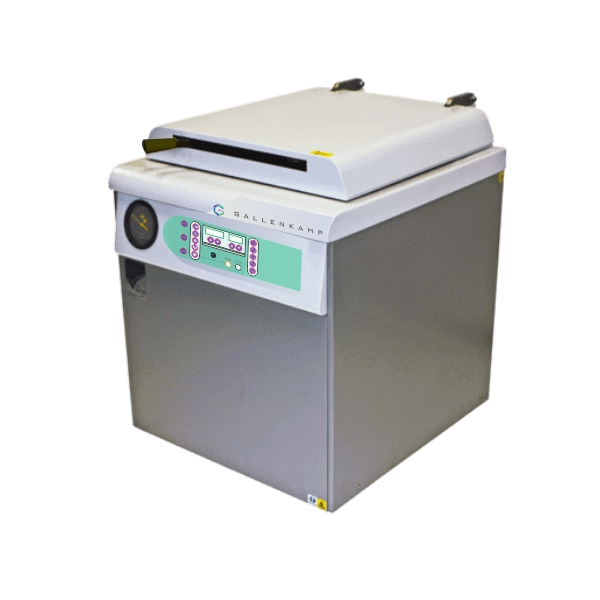

Top Loading Autoclaves

Vertical autoclaves can accommodate the tallest flasks, fermentors, and bioreactors at one-third the price of a comparable front-loading autoclave. Gallenkamp’s top loading autoclaves are among the most compact full-size units on the market today.  Compared to similar-sized medical-grade rectangular-vessel units, cylindrical autoclaves are easier to operate, less expensive to maintain, and more reliable over a longer working life.

Category:
WHERE TO BUY
GO BACK

    Product

    Sku

    Name (required)

    Country (required)

    Company

    Email (required)

    Message

    Top-loading autoclaves are very popular internationally and in for life-science research. Not only do they easily accommodate the tallest flasks, fermentors, and bioreactors, they’re also excellent for waste processing, especially in large batches (pop the lid and drop in the bag, just like a rubbish bin).

    By relying on ultra-efficient cylindrical pressure vessels, Gallenkamp has engineered top-loading autoclaves that feature large capacities, low loading heights, small footprints, and low lifetime operating costs. Every Gallenkamp is custom built in our London factory, specifically to handle your applications.  All top-loading sterilizers can be outfitted for “gravity” or vacuum cycles, with in-chamber or independent heating. They come supplied with a stainless steel load support plate and stainless steel mesh baskets for optimal steam circulation. All models include the most current version of our full-featured, fully-programmable Tactrol Control System.

    Does your facility or process pose formidable power, programming, or steam generation challenges? We specialize in custom-engineered solutions, and are eager to discuss how best to meet your needs and exceed your expectations.

    Features

    • Programmable TACTROL® 2 Control System with simple “one-touch” start
    • PED-certified 316L Stainless Steel Chamber and Door
    • Quickseal Single-Action Interlocking Safety Lid—cannot be opened unsafely
    • Chamber Pressure Gauge
    • Stainless Steel Loading Baskets
    • Biomaster™ Antimicrobial Surfaces
    • Assisted Load Cooling
    • Benchtop or Mobile Cart mounted for ease of positioning and service
    • One-button start
    • Permission-based Door Release
    • Automatic Timed Freesteaming
    • Media Warming and Delayed Start
    • Thermocouple Entry and Test Ports
    • Two full width stainless steel anti-tip Loading Baskets

    Options

    • Program memory
    • Printer
    • Discard (waste) containers
    • False Floor for Discard (waste) containers
    • Drain Protection
    • LoadLite Hoist – Top Loading Priorclaves 100L and above
    • Internal Steam Generator
    • Vacuum Drying
    • Extended Warranty – 2 Years
    • Pulsed Freesteaming

    Specifications

    60L Top-Loading Specifications

    Working Volume 60 Litres
    Operating Range up to 138°C, 2.4 bar
    Loading Format Top Loading
    Loading Height 850mm
    Heater Power 3kW – 13A single phase
    Heat Input Elements in Chamber
    Chamber Size 350mm dia x 625mm
    External Dimensions 472 x 620 x 900mm
    Floor Weight 85kg
    Minimum Installation 777 x 925 x1522mm (including door swing)

    60L Top-Loading Vacuum Specifications

    Working Volume 60 Litres
    Operating Range up to 138°C, 2.4 bar
    Loading Format Top Loading
    Loading Height 850mm
    Heater Power 3kW – 13A single phase
    Heat Input Elements in Chamber
    Chamber Size 350mm dia x 625mm
    External Dimensions 472 x 790 x 900mm
    Floor Weight 90kg
    Minimum Installation 670 x 1395

    100 Litre Top Loading

    Working Volume 100 Litres
    Operating Range up to 138°C, 2.4 bar
    Loading Format Top Loading
    Loading Height 755mm
    Heater Power 7kW – 30A single-phase 10.5kW – 15A three-phase
    Heat Input Electrical or Direct Steam Source
    Chamber Size 500mm dia x 500mm
    External Dimensions 660 x 840 x 840mm
    Floor Weight 147kg
    Minimum Installation 965 x 1146 x 1400mm (including Door Swing)

    100 Litre Vacuum Top Loading

    Working Volume 100 Litres
    Operating Range up to 138°C, 2.4 bar
    Loading Format Top Loading
    Loading Height 755mm
    Heater Power 7kW – 30A single-phase 10.5kW – 15A three-phase
    Heat Input Electrical or Direct Steam Source
    Chamber Size 500mm dia x 500mm
    External Dimensions 960 x 840 x 840mm
    Floor Weight 157kg
    Minimum Installation 980 x 1400

    150L Top-Loading Specifications

    Working Volume 150 Litres
    Operating Range up to 138°C, 2.4 bar
    Loading Format Top Loading
    Loading Height 935mm
    Heater Power 7kW – 30A single-phase 10.5kW – 15A three-phase
    Heat Input Internal Electrical or Direct Steam Source
    Chamber Size 500mm dia x 720mm
    External Dimensions 660 x 840 x 1020mm
    Floor Weight 165kg
    Minimum Installation 980 x 1146 x 1640

    150L Top-Loading Vacuum Specifications

    Working Volume 150 Litres
    Operating Range up to 138°C, 2.4 bar
    Loading Format Top Loading
    Loading Height 755mm
    Heater Power 7kW – 30A single-phase 10.5kW – 15A three-phase
    Heat Input Electrical or Direct Steam Source
    Chamber Size 500mm dia x 720mm
    External Dimensions 960 x 840 x 1020mm
    Floor Weight 165kg
    Minimum Installation 980 x 1640



    Ordering Information

    V60-Base 60 Litre Autoclave
    EV100-Base 100 Litre Autoclave
    EV-150-Base 150 Litre Autoclave
