Key features
- Perfect for routine electrophoresis
- 300V, 700mA, 150W
- 5 pairs of outlets for multiple gel tanks
Overview

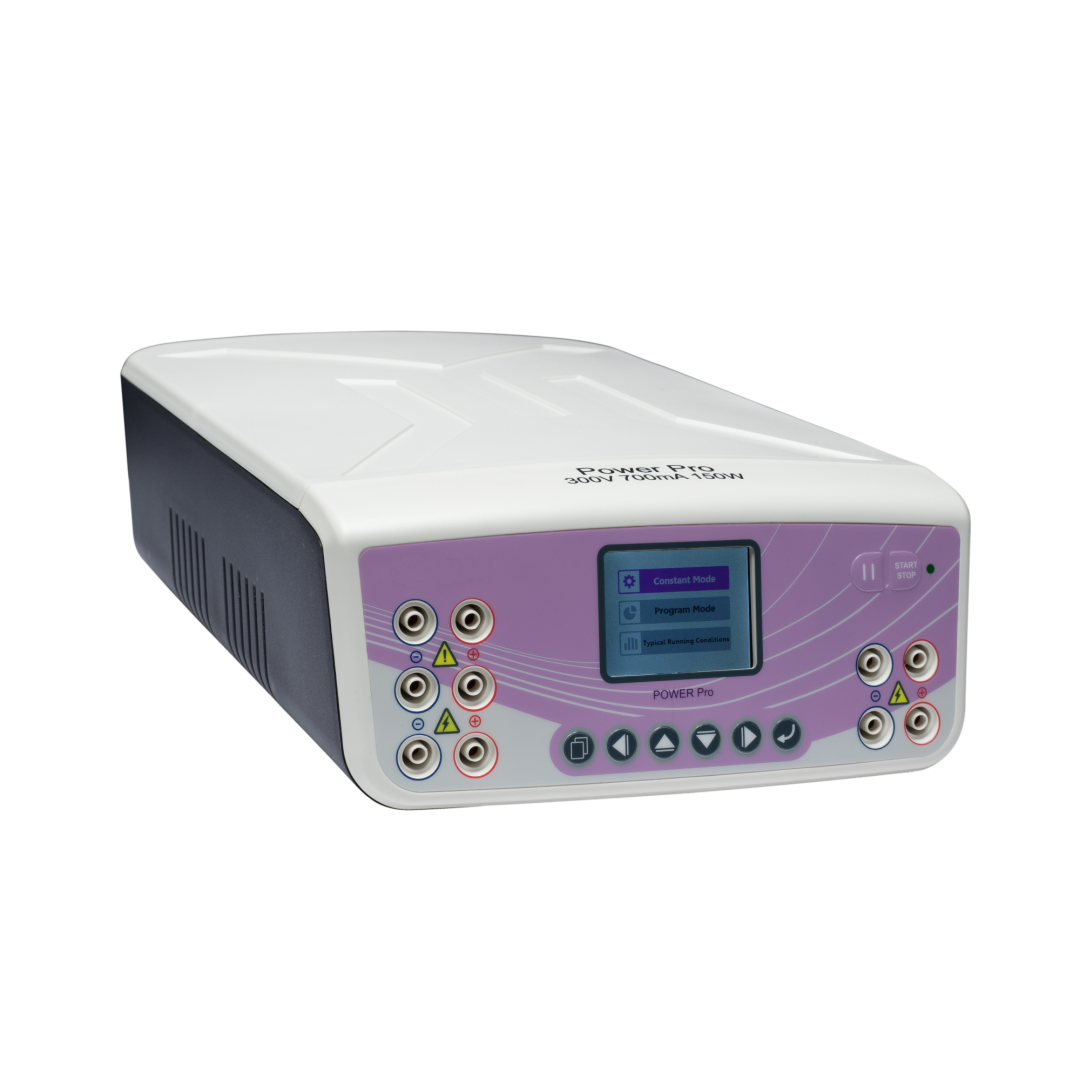

The SYNpowerpro 300 is a versatile multi-function power supply suitable for a wide range of electrophoresis applications. At 300V, 700mA and 150W the SYNpowerpro 300 has nearly twice the current and power of the market leading equivalent unit. Perfectly suited for use with Syngene’s SynMini, SynMidi, SynChoice, SynMaxi range of horizontal electrophoresis systems and SynPAGE Mini vertical electrophoresis systems.
The SYNpowerpro 300 even has built in pre-set protocols from running each of Syngene’s electrophoresis systems, and allows users to create and save protocols for their own systems. A 2.4” TFT-LCD Screen displays the current running parameters and allows the user to browse pre-set and saved protocols.
The SYNpowerpro 300 can be operated at constant voltage, constant current or constant power and can store up to 30 programmes with up to 6 steps each. The convenient pause/resume key allows any run to be temporarily halted for inspection of the gel and restarted from the same position. The SYNpowerpro 300 is the ideal power supply for:
- Routine horizontal electrophoresis using SynMini, SynMidi, SynChoice, SynMaxi
- Vertical Electrophoresis using SynPAGE Mini
Ordering information
SYNpowerpro 300 | SYNpowerpro, MIDI 300V 700mA 150W – 110/230V |
Specification
Unit dimensions (cm) | 21.5 x 33.5 x 10.4 |
Weight (kg) | 2.1 |
Construction | Flame retardant ABS faceplate |
Timer | 1 – 999 mins |
Resolution | 1V, 1mA |
Input voltage | 100-240V; 47-60Hz, 200W |
Operating temperature | 4℃~ 40℃ |
Operating environment | ≤95% RH |
Display | 2.4” TFT |
Controller | Microprocessor |
Safety features | Shrouded plugs and sockets |
Compliance marks | CE, ETL |
Maximum voltage (V) | 300 |
Maximum current (mA) | 700 |
Maximum power (W) | 150 |
Number of output pairs | 5 |
Operating modes | Constant Parameter, Programmable 6 Step Programme. Pre-programmed settings |
Output diameter (mm) | 4 |
No load detection | Yes |
Overload detection | Yes |
Ground leakage detection | Yes |
Over temperature protection | Yes |
