    Key features:

    • Run a maximum of 4 gels within an hour
    • Perform 2D and blotting within a day
    • Undertake discovery projects
    • Screen new samples and evaluate sample preparation conditions

    Overview

    Syngene Mini Vertical systems are predominantly used for protein electrophoresis.

    By combining both functionality and ease of use, the SynPAGE systems set the bench mark for simple, versatile vertical mini gel electrophoresis. Each SynPAGE electrophoresis system can accommodate up to 4 handcast gels (additional plates required) or 2 commercial precast gels to provide complete flexibility for individual research needs, while unique sliding clamp technology within the PAGE insert facilitates fast, intuitive leak-free casting.

    With a trouble-free set up and consistent performance, the SynPAGE Mini Vertical systems are perfect for today’s laboratories, where the ability to generate reproducible results quickly is essential.

    Ordering Information

    Ordering Information

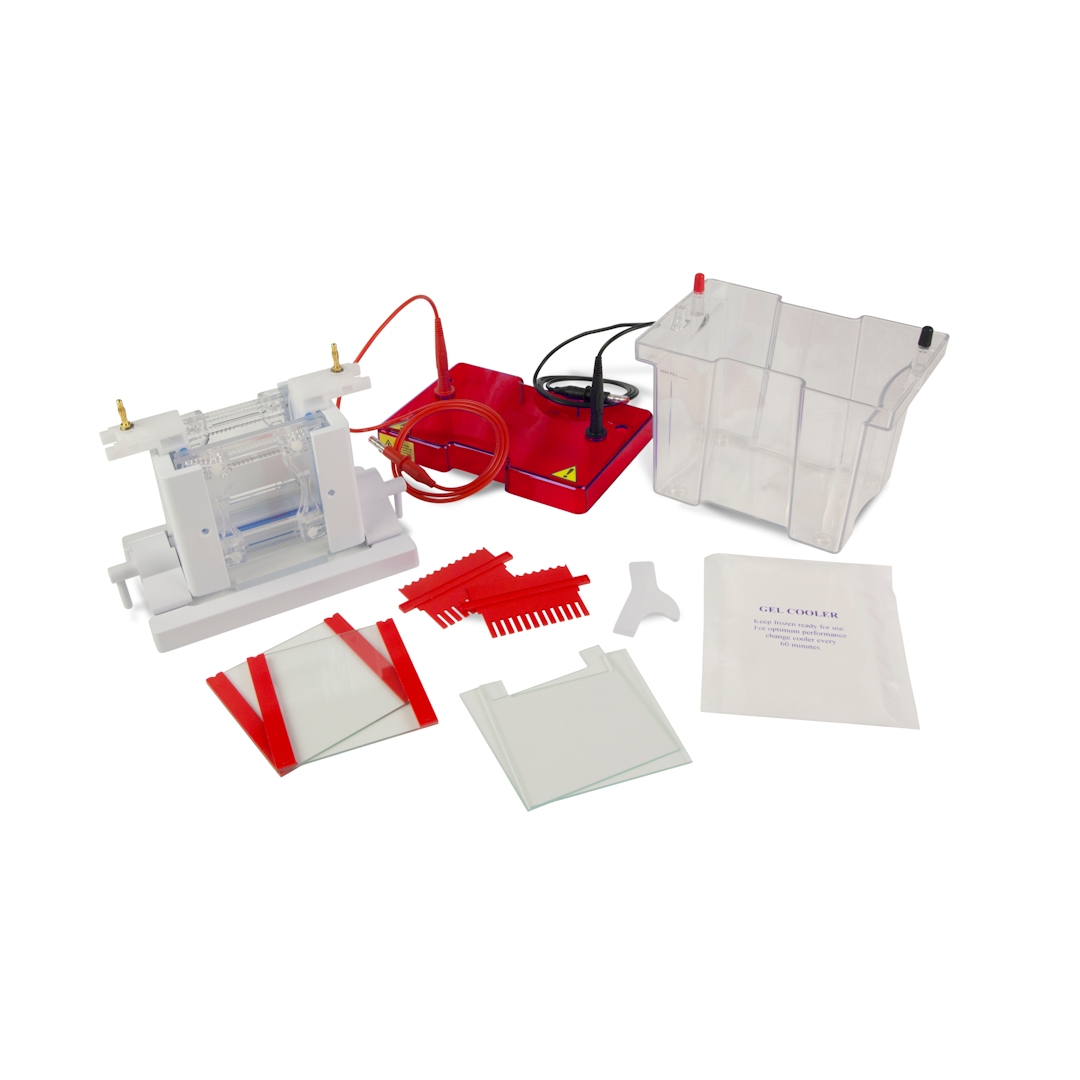

    SYN10D SynPAGE Mini, 10 x 10cm Dual, 2 sets of Glass Plates, 1mm thick bonded Spacers, 2 x 12 sample, 1mm thick combs. CLAMP VERSION
     SYN10DSYS SynPAGE Mini, 10 x 10cm Dual, 2 sets of Glass Plates, 1mm thick bonded Spacers, 2 x 12 sample, 1mm thick combs including caster. CLAMP VERSION
    SYN10PRE SynPAGE Mini, 10 x 10cm Dual. No accessories. CLAMP VERSION
     SYN10DYS-CU SynPAGE Mini, 10 x 10cm Dual, 2 sets of Glass Plates, 1mm thick bonded Spacers, 2 x 12 sample, 1mm thick combs including caster. CLAMP VERSION, external casting upstand



    Specifications

    SKU SYN10D SYN10DSYS SYN10DSYS-CU SYN10PRE
    Unit dimensions (cm) 19 x 13 x 15 19 x 13 x 15 19 x 13 x 15 19 x 13 x 15
    Weight (kg) 1.8 1.8 1.8 1.8
    Capacity 1 – 4 gels 1 – 4 gels 1 – 4 gels 1 – 4 gels
    Maxiumum sample capacity 80 80 80 80
    Base buffer volume 250 250 250 250
    Typical running conditions 1 – 2 hours at 90 – 225V 1 – 2 hours at 90 – 225V 1 – 2 hours at 90 – 225V 1 – 2 hours at 90 – 225V
    Gel dimensions 8 x 8.5 8 x 8.5 8 x 8.5 8 x 8.5
    Maximum buffer volume (ml) 1200 1200 1200 1200
    Includes casting base False True True False
    Blotting insert SYN10BI SYN10BI SYN10BI SYN10BI
    2D insert SYN10DCI SYN10DCI SYN10DCI SYN10DCI
    Includes additional caster False False True False
    Plate dimensions 10 x 10 x 0.2 10 x 10 x 0.2 10 x 10 x 0.2 10 x 10 x 0.2



    Accessories

      SynPage Mini – casting stand without base (no electrodes)
    SynPage Mini – casting stand with base
    SynPage Mini – casting base
    SynPage Mini – replacement caster sealing mat
    SynPage Mini – inner running module
    SynPage Mini – cooling block
    Glass plates for SynPage Mini
    SynPage Mini – dummy plate, 10 x 10cm
    Combs for the SynPage Mini
