Key features:
- Available with 10 x 7cm, 10 x 10cm or with both gel trays
- Run up to 100 samples
- Low buffer volumes
- Ideal for rapid electrophoresis

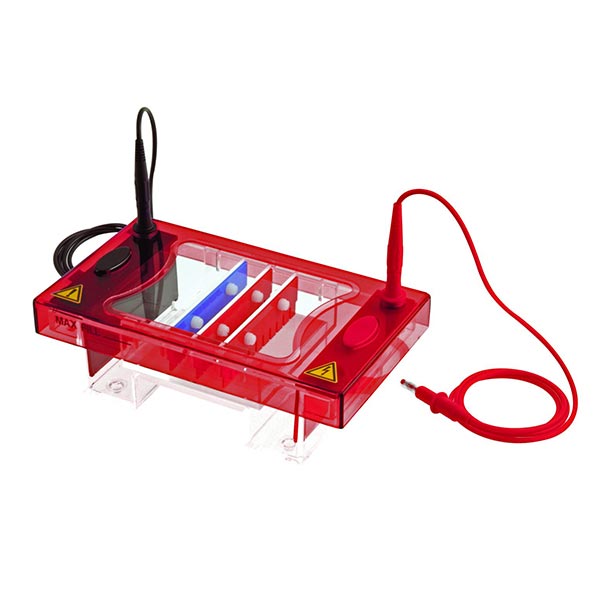

SynMidi
Overview
With gel tray options of 10 x 7cm and 10 x 10cm, the SynMidi has been designed for routine horizontal gel electrophoresis. Extending only the width of this unit allows more samples to be resolved per gel than the SynMini, without a significant increase in buffer or gel volumes.
A maximum of 100 samples per gel can be resolved, making this unit ideal for those routinely checking medium numbers of samples over short to medium gel run lengths. Loading guides allow easy well identification and sample loading. Scoops are also available as an option to allow safe transfer of gels.
Ordering Information
| Ordering Information | |
| SYNMIDI7 | SynMidi, 10 x 7cm Gel tray, 2 x 16 sample combs, loading guides and dams |
| SYNMIDI10 | SynMidi, 10 x 10cm Gel tray, 2 x 16 sample combs, loading guides and dams |
| SYNMIDIDUO | SynMidi, 10 x 7cm & 10 x 10cm Gel tray, 2 x 16 sample combs, loading guides and dams |
Specifications
| SKU | SYNMIDI10 | SYNMIDI17 | SYNMIDIDUO |
| Unit dimensions (cm) | 12.5 x 22 x 9 | 12.5 x 22 x 9 | 12.5 x 22 x 9 |
| Maximum sample capacity | 100 | 50 | 100 |
| Base buffer volume | 300 | 300 | 300 |
| Buffer recirculation | No | No | No |
| Flexicaster options | SYN7/10-FC, SYN15/20-FC, SYN26-FC | SYN7/10-FC, SYN15/20-FC, SYN26-FC | SYN7/10-FC, SYN15/20-FC, SYN26-FC |
| Typical running conditions | 90V, 45-60 minutes | 90V, 45-60 minutes | 90V, 45-60 minutes |
| Bromophenol blue migration rate | ~4-5cm/h at 90V | ~4-5cm/h at 90V | ~4-5cm/h at 90V |
| Gel dimensions | 10 x 10 | 10 x 7 | 10 x 7 & 10 x 10 |
Accessories
 |
SynMidi – 10 x 7cm gel tray |
 |
SynMidi – 10 x 10cm gel tray |
 |
SynMidi – positive electrode |
 |
SynMidi – negative electrode |
 |
SynMidi – gel tray dams |
 |
Flexicasters |
 |
SynMidi – loading guides |
 |
SynMidi – viewing platform |
 |
SynMidi – cool pack and platform |
 |
SynMidi – 10cm gel scoop |
 |
SynMidi combs |
 |
Electrophoresis cable (black and red) |
