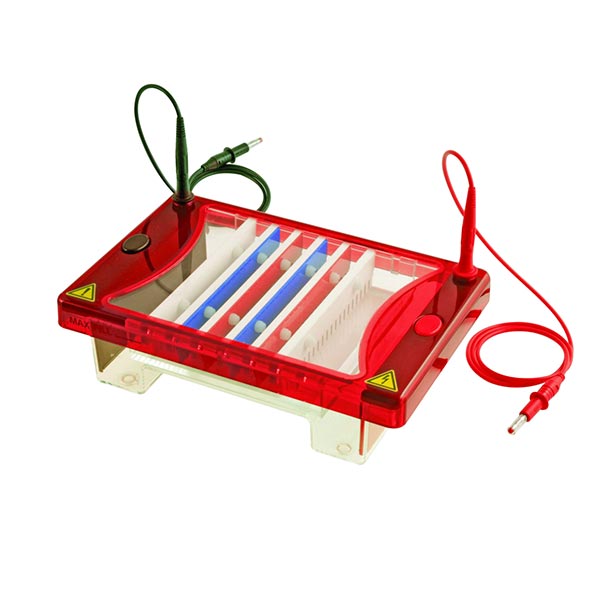

SynChoice - Wide midi horizontal electrophoresis system

SynChoice

Key features:

  • Three tray options
  • Run up to 210 samples
  • Low buffer volumes
  • Multichannel pipette compatible combs for speed loading
Category:
WHERE TO BUY
GO BACK

    Product

    Sku

    Name (required)

    Country (required)

    Company

    Email (required)

    Message

    Overview

    The SynChoice offers a wide degree of versatility. Three tray options are available; 15 x 7cm, 15 x 10cm and 15 x 15cm  – allowing the choice of one, two or all three gel length options at the time of purchase. Further purchases of additional accessories are no longer required. Maximising comb and tray options allow up to 210 samples to be resolved per gel. The 15cm total run length allows restriction fragment or other close MW sample bands to be easily separated and identified. Speed loading is accomplished using 10, 14, 16, 18, 28 or 30 sample multi-channel pipette compatible combs.

    Fabricated SynChoice stretch units are available with optional 15 x 20cm and 15 x 25cm gel trays and four 28-sample combs for those researchers wanting to perform higher resolution separation of more samples over a longer distance. SynChoice Trio includes all 3 tray sizes for optimum versatility and value.

    SynChoice ST

    A “stretched” version of the SynChoice, this system is perfect for extended high resolution separations of samples from 96-well microplates and blocks, using its 15 x 20cm and 15 x 25cm gel trays and four 28-sample multichannel compatible combs. It may also be used for routine preparatory techniques.

    Ordering Information

    Ordering Information
    SYNCHOICE7 15 x 7cm Gel tray, 2 x 20 sample combs, loading guides and dams
    SYNCHOICE10 15 x 10cm Gel tray, 2 x 20 sample combs, loading guides and dams
    SYNCHOICE15 15 x 15cm Gel tray, 2 x 20 sample combs, loading guides and dams
    SYNCHOICETRIO 15 x 7,10 & 15cm Gel tray, 2 x 20 sample combs, loading guides and dams
    SYNCHOICETRIO15 3 x 15cm Gel tray, 2x 20 sample combs, loading guides and dams
    SYNCHOICEST20 15 x 20cm Gel tray, 4 x 28 sample combs, loading guides and dams
    SYNCHOICEST25 15 x 25cm Gel tray, 4 x 28 sample combs, loading guides and dams



    Specifications



    SKU SYNCHOICE10 SYNCHOICE15 SYNCHOICE7 SYNCHOICEST20 SYNCHOICEST25 MSCHOICETRIO MSCHOICETRIO15
    Unit dimensions (cm) 17.5 x 26.5 x 9 17.5 x 26.5 x 9 17.5 x 26.5 x 9 17.5 x 41 x 9 17.5 x 41 x 9 17.5 x 26.5 x 9
    Maximum sample capacity 140 210 70 280 350 210
    Base buffer volume 500 500 500 1000 1000 500
    Buffer recirculation Requires SYN15LID-BP Requires SYN15LID-BP Requires SYN15LID-BP Requires SYN15STLID-BP Requires SYN15STLID-BP Requires SYN15LID-BP
    Flexicaster options SYN15/20-FC, SYN26-FC SYN15/20-FC, SYN26-FC SYN15/20-FC, SYN26-FC SYN15/20-FC, SYN26-FC SYN15/20-FC, SYN26-FC SYN15/20-FC, SYN26-FC
    Typical running conditions 90-150V, 60-90 minutes 90-150V, 60-90 minutes 90-150V, 60-90 minutes 100-150V, 60-90 minutes 100-150V, 60-90 minutes 90-150V, 60-90 minutes
    Bromophenol blue migration rate ~4-7cm/h at 90-150V ~4-7cm/h at 90-150V ~4-7cm/h at 90-150V ~4-6cm/h at 100-150V ~4-6cm/h at 100-150V ~4-7cm/h at 90-150V
    Gel dimensions 15 x 10 15 x 15 15 x 7 15 x 20 15 X 25 15 x 7 & 15 x 10 & 15 x 15

    Accessories

    SynChoice – 15 x 17cm gel tray
    SynChoice – 15 x 10cm gel tray
    SynChoice – 15 x 15cm gel tray
    Flexicasters
    SynChoice – gel tray dams
    SynChoice – positive electrode
    SynChoice – negative elecrode
    SynChoice – loading guides
    SynChoice – viewing platform
    SynChoice – 15cm UV gel scoop
    SynChoice – cool-pack and platform
    SynChoice combs
