Spatulas NMR

Category:
WHERE TO BUY
GO BACK

    Product

    Sku

    Name (required)

    Country (required)

    Company

    Email (required)

    Message

    Information

    PTFE XYLAN® coating provides a non-stick surface to which very few solid or liquid substances will permanently adhere.

    Being non-protein binding and not supporting biological growth ideal for biology, microbiology and pharmaceutical applications since PTFE coating provides bio-inert surfaces.
    The PTFE coating offers a unique combination of chemical inertness, purity, low permeability, heat resistance, toughness, and non-stick qualities. By combining these materials with stainless steel range of consumables we bring you a versatile line of products that are able to handle extreme temperatures, are inert to practically all chemicals and are non-contaminating.

    Cleaning

    They have excellent non-wetting properties that makes cleaning very easy and can also undergo steam or chemical sterilization.

    High and Low Temperature properties

    Excellent heat resistance and great cryogenic stability with a temperature range from -195°C to as high as 260°C. Suitable for lifting or handling hot, cold or chemically active materials.

    Corrosion Resistance

    The chemical resistance of PTFE coating makes it normally impervious to chemical environments. The coating provides good resistance to acid and alkali solutions. Highly reactive fluorinating agents seem to be the only chemicals to affect it.

    Examples of Chemical Resistance after 24 hours exposure

    • HCI (concentrated) at room temperature, no change to coating.
    • HCI (pH 2) at room temperature, no change to coating.
    • HCI (pH 2) at 52°C, no change to coating.
    • NaOH (50%) at room temperature, no change to coating.
    • NaOH (pH 9.5) at 52°C, no change to coating.
    • MEK (Methyl Ethyl Ketone – solvent) at room temperature, slight marks on coating.
    • Toluene (solvent) at room temperature, slight marks on coating.

    Other useful information.

    Applied as a self priming single coat PTFE.

    The coefficient of friction is generally in the range of 0.05 to 0.20.

    Ordering Information

    Model Dimensions Description

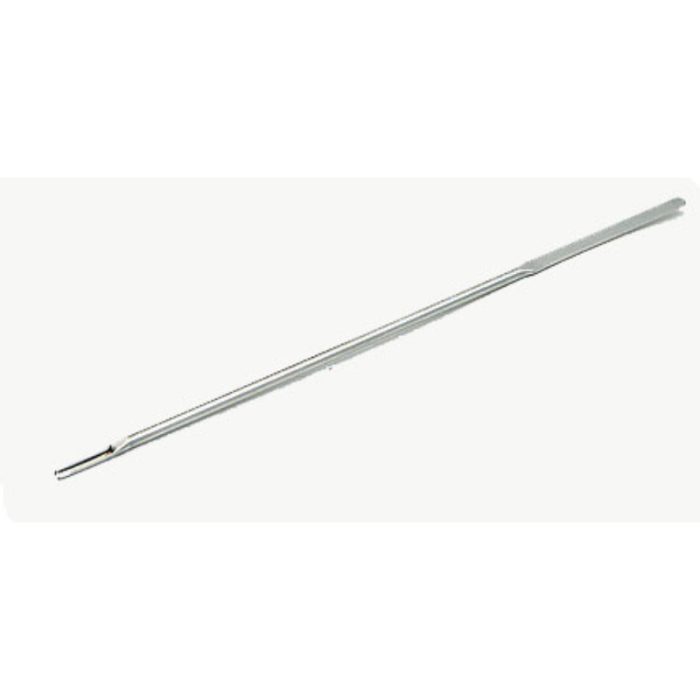

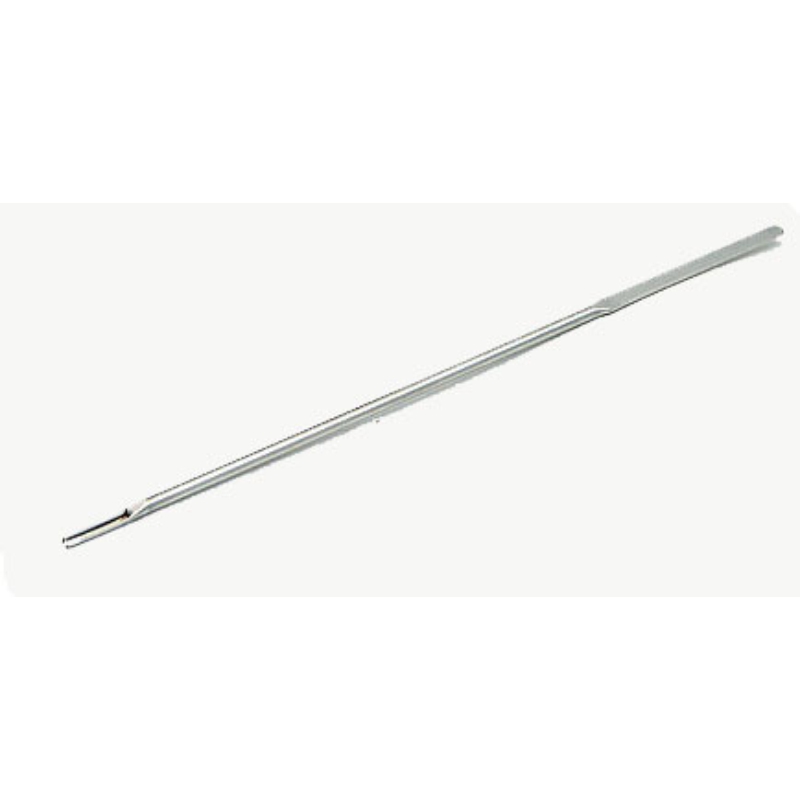

    9576 External: 250mm long NMR Spatula, stainless steel 304 spec 18/8 non-magnetic, bright finish.

    Packed Weight: 0.012kg

    This micro spatula is recommended for small powder samples for introducing into 5mm OD NMR tubes. The spatula is 250mm long allowing you to reach the very bottom of the tube to remove samples easily.

    The rounded end of the spatula with curved tip can be used as a scoop whilst flat end can be used to break stuck samples. Both ends are 3.5mm wide.

    Supplied in standard pack of 1.
