AirClean® Systems rotary evaporator enclosures are engineered specifically for enclosing rotary evaporators, chromatography equipment and robotic equipment while allowing unrestricted access for operator interaction. The clear polycarbonate shell and horizontal sliding doors provide visibility and ergonomic access for monitoring the enclosed equipment. The AirSafe ™ automatic safety controller maintains airflow and constantly monitors filter condition. At only 24 inches deep and 38 inches wide, this enclosure takes up very little counter space.

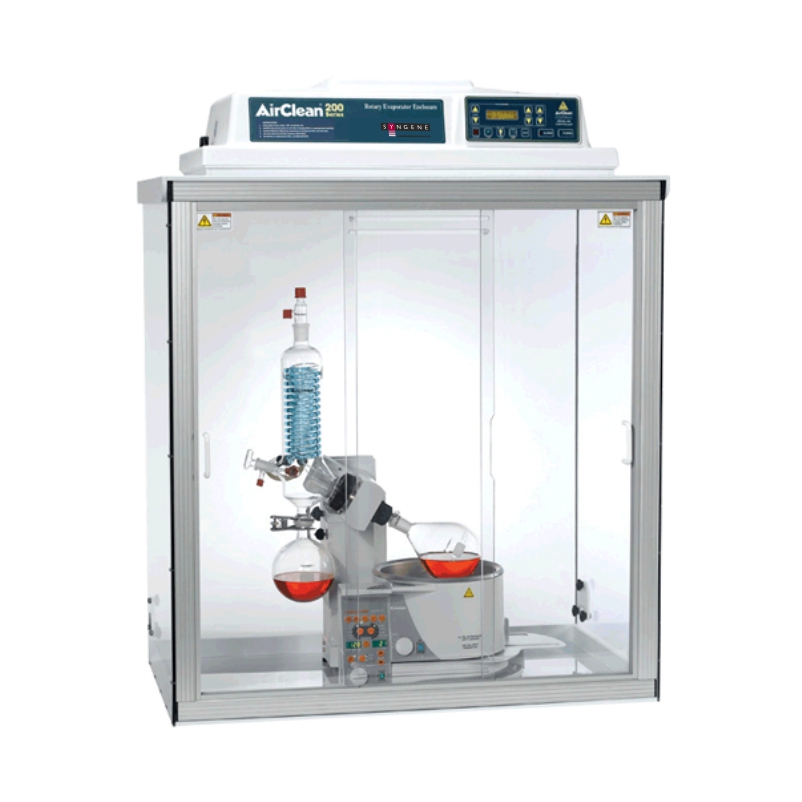

Rotary Evaporator Enclosure
Features
- Features
- AirSafe® automatic safety controller
- Integral base with deep spill lip
- No ductwork required
- No installation required – plugs directly into a standard 110V or 220V electrical outlet
- Extremely quiet operation < 49dBA
- Encloses equipment while retaining full operator access
- Lab event timer
- Horizontal sliding access doors for equipment manipulation
- Gas phase bonded carbon filtration
Safety Features
- Filter safety lockout to ensure correct filter replacement
- Tested to UL 61010-1,CSA C22.2 No. 61010-1, and EN 61326-1
- Brushless, sparkless blower is post-filter
- Deep base effectively contains accidental spills
- Filter and electronics are located above the workspace, eliminating the chance of a chemical spill entering these sensitive areas
- Real time monitoring of installed filtration bed
Specifications
External
| Product Number | W x D x H (inches) | W x D x H (mm) |
| SYN-AC23824A220-E | 38 x 24 x 48 | 965 x 810 x 1219 |
Internal
| Product Number | W x D x H (inches) | W x D x H (mm) |
| SYN-AC23824A220-E | 37 x 21 x 38 | 940 x 533 x 965 |
