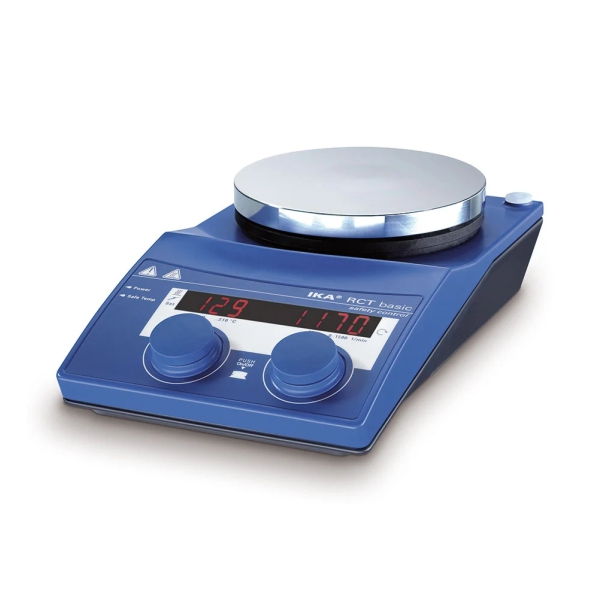

The bestseller in laboratories: Strong motor for a higher range of speeds, additional temperature control mode for faster heating of medium
- Integrated temperature control
- Incl. PT 1000 temperature sensor (PT 1000.60)
- Exact temperature and speed setting via digital display, even when switched off
- Set safety temperature limit displayed digitally
- Hot Top indicator >> hot surface warning to prevent burns!
- Digital error code display
- With adjustable safety circuit of heating plate temperature (50 – 360 °C)
- Safety magnetic stirrer with heating, suitable for unsupervised operation
- Bushing according to DIN 12878 for connecting a contact thermometer, e.g. ETS-D5, enables precise temperature control
- High level of safety thanks to improved heat control technology
- Enclosed assembly (IP 42) guarantees long service life
- Aluminium heating plate for optimum heat transfer
- Improved magnetic adhesion
- Incl. protection cover H 100
- Max. stirring quantity (H₂O): 20 l
- Speed range: 50 – 1500 rpm
- Temperature range: RT – 310 °C
Additional information
Varient | UK, Europe |
---|
Technical Data
Number of stirring positions | 1 |
Stirring quantity max. per stirring position (H₂O) | 20 l |
Motor rating output | 9 W |
Direction of rotation | right |
Speed display set-value | LED |
Speed display actual-value | LED |
Speed control | Turning knob |
Speed range | 50 – 1500 rpm |
Setting accuracy speed | 10 rpm |
Stirring bar length | 20 – 80 mm |
Self-heating of the set-up plate by max. stirring (RT:22°C/duration:1h) | 28 +K |
Heat output | 600 W |
Temperature display set-value | LED |
Temperature display actual-value | LED |
Temperature unit | °C |
Heating temperature range | Room temp. + device self heating – 310 °C |
Heat control | Turning knob |
Temperature setting range | 0 – 310 °C |
Heating rate heating plate | 6.5 K/min |
Temperature setting resolution of heating plate | 1 K |
Connection for ext. temperature sensor | PT1000 |
Temperature setting resolution of medium | 1 K |
Adjustable safety circuit | 50 – 360 °C |
Set-up plate material | Aluminium alloy |
Set-up plate dimensions | Ø 135 mm |
Sensor in medium detection (Error 5) | yes |
Heat control accuracy with ext. PT1000 (500ml H2O in 600ml beaker,40mm stirring bar,600rpm,50°C) | 1 ±K |
Heat control accuracy with ETS-D5 (500ml H2O in 600ml beaker,40mm stirring bar,600rpm,50°C) | 0.5 ±K |
Heat control accuracy with ETS-D6 (500ml H2O in 600ml beaker,40mm stirring bar,600rpm,50°C) | 0.2 ±K |
Dimensions (W x H x D) | 160 x 85 x 270 mm |
Weight | 2.5 kg |
Permissible ambient temperature | 5 – 40 °C |
Permissible relative humidity | 80 % |
Protection class according to DIN EN 60529 | IP 42 |
Voltage | 220 – 230 / 115 / 100 V |
Frequency | 50/60 Hz |
Power input | 650 W |
Ordering information
0003810002 | RCT basic |
0003810000 | RCT basic, Euro plug |
