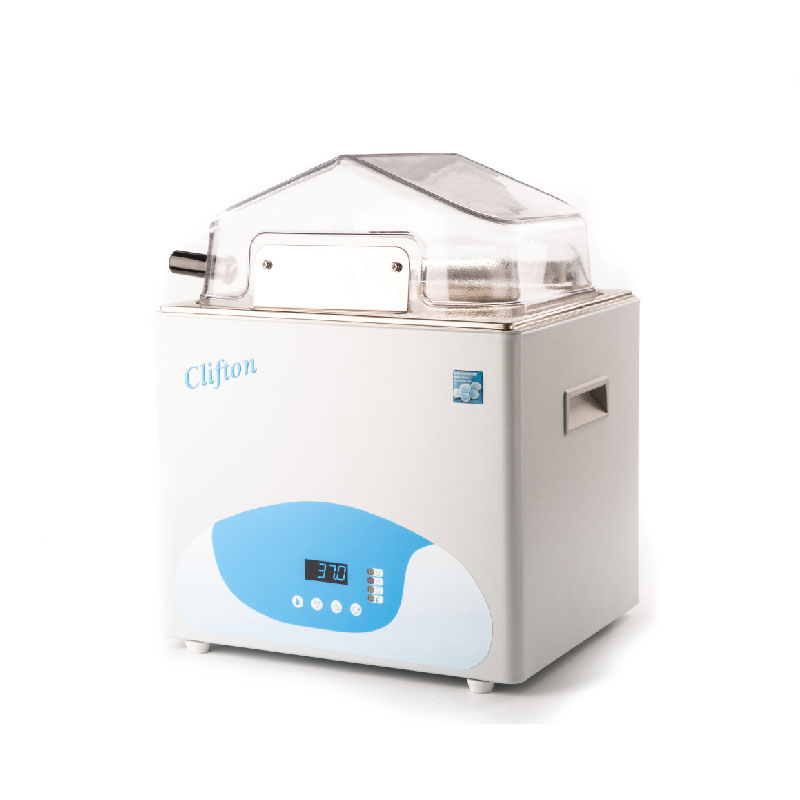

These NE3 series Clifton Water baths feature precision temperature control with an option to enable a run back or delay start timers, the latter useful for pre-conditioning water temperature before use.
Supplied with clear hinged lid, convenient to use, all condensate runs back into the bath in either open or closed positions. Also featured a durable gated drain tap designed to quickly empty the water bath, painted antibacterial surfaces and touch flush fitting controls, with illuminated LED display for temperature and time values.
Every water bath undergoes a factory calibration at two reference temperatures validating each bath for total confidence in use.
Each bath comes complete with a removable Clifton “low” height stainless steel perforated shelf.
Comprising of a high quality corrosion resistant stainless steel tank, with a bright clean finish housed in a durable paint finished outer case.
Heaters and temperature sensor concealed under the tank providing a clutter free working area easy to wipe clean. The heating footprint covers the underside base of the tank, providing rapid energy transfer, quicker heat up times and a reduction in energy consumption with improved temperature uniformity.
Featuring side lifting handles for ease of transportation.
Information
Safety Features
Thermal cut-out fitted in the heater. IP-rated clear booted on/off power switch. Bath fitted with non-slip rubber feet.
The under/over temperature alarm is automatically set 4˚C above and 4˚C below set temperature. When in alarm condition the indicator illuminates and actual bath temperature is shown, if bath is over temperature heating is switched off. Once liquid temperature has fallen or risen above/below the alarm setting the indicator clears and actual bath temperature is shown, control resumes.
Controls
Featuring bold LED display of measured temperatures in real-time, increments of ±0.1°C, using precision PID temperature control. Timer settings variable, 00:01 to 99:59 [hh:mm]. Settings retained even after turning the unit off.
Easy to use splash-proof controls, touch keypads for setting temperature values with indicators for heating, timer and over temperature alarm.
Features auto setting over and under temperature alarm protecting samples at set temperature.
Every unit undergoes a factory calibration at two temperatures for validation.
Features and Benefits
- Clifton unstirred digital water baths with timers are designed for immersion of flasks/bottles/racks in a highly stable temperature environment throughout the water bath.
- The shelf in the stainless steel tank provides a stable support for flasks/bottles/racks that can be removed for cleaning. The shelf is a low height design maximizing the working height in the bath, either needing less water when compared with traditional water baths or allowing tall containers or vessels to be immersed to a greater working depth. With lower water levels comes the benefit reduced heat up times and energy saving.
- Timer can be set from 00:01 to 99:59 (hh:mm).
- Three-year warranty and comprehensive customer support.
- Broad range of accessories available to suit wide range of applications.
- Before leaving our factory every water bath is identified with a unique serial number and undergoes a factory calibration adjusting control to known traceable value, electrically tested for safety at final inspection and a test certificate enclosed in rear of the instruction book.
- Painted surfaces feature “anti-bacterial technology,” which inhibits bacterial growth, improving hygiene requirements as demanded by clinical and laboratory environments. The Clifton range features easy-to-clean surfaces and finishes that are resistant to routine and efficient disinfections. The efficacy of the finish is maintained over time, as the anti-bacterial agent is integral to the paint finish.
Product Information
| Product Code | Capacity | Temp Control | Temp Range | Temp Alarm | Temperature control and run back timer | Temperature control and delay start timer | Sensitivity | Uniformity | Drain | Heater Power (220-240V) | Voltage | Packed Weight (kg) |
| NE3-4DT | Nominal Tank Capacity: 4 Litres Brimful Capacity: 6 litres |
PID Digital, LED display showing actual or set temperature, resolution 0.1°C | Ambient +5°C – 100°C | Under/over temperature alarm is automatically set 4˚C above set point. | Temperature control and run back timer | Heating commences at a set time in future within 24 hours, useful for pre-conditioning water bath ready for us | ±0.2°C | ±0.1°C | 400 W | 120V or 230V models available 50-60Hz | 5.5 kg | |
| NE3-8DT | Nominal Tank Capacity: 8 Litres Brimful Capacity: 10 litres |
PID Digital, LED display showing actual or set temperature, resolution 0.1°C | Ambient +5°C – 100°C | Under/over temperature alarm is automatically set 4˚C above set point. | Indicator and end message variable, 00:01 to 99:59 [hh:mm], activates at set temperature | Heating commences at a set time in future within 24 hours, useful for pre-conditioning water bath ready for use. | ±0.2°C | ±0.1°C | Drain tap fitted, large 12mm bore for fast emptying | 800 W | 120V or 230V models available 50-60Hz | 7 kg |
| NE3-14DT | Nominal Tank Capacity: 14 Litres | PID Digital, LED display showing actual or set temperature, resolution 0.1°C | .Ambient +5°C – 100°C | Under/over temperature alarm is automatically set 4˚C above set point. | Indicator and end message variable, 00:01 to 99:59 [hh:mm], activates at set temperature | Heating commences at a set time in future within 24 hours, useful for pre-conditioning water bath ready for use. | ±0.2°C | ±0.1°C | Drain tap fitted, large 12mm bore for fast emptying | 1000 W | 120V or 230V models available 50-60Hz | 8 kg |
| NE3-28DT | Nominal Tank Capacity: 28 Litres | PID Digital, LED display showing actual or set temperature, resolution 0.1°C | Ambient +5°C – 100°C | Under/over temperature alarm is automatically set 4˚C above set point. | Indicator and end message variable, 00:01 to 99:59 [hh:mm], activates at set temperature | Heating commences at a set time in future within 24 hours, useful for pre-conditioning water bath ready for use. | ±0.2°C | ±0.1°C | Drain tap fitted, large 12mm bore for fast emptying. | 1500 W | 120V or 230V models available 50-60Hz | 11 kg |
| NE3-56DT | 56 litres Nominal capacity | PID Digital, LED display showing actual or set temperature, resolution 0.1°C | Ambient +5°C – 100°C | Under/over temperature alarm is automatically set 4˚C above set point | Indicator and end message variable, 00:01 to 99:59 [hh:mm], activates at set temperature | Heating commences at a set time in future within 24 hours, useful for pre-conditioning water bath ready for use. | ±0.2°C | ±0.1°C | Drain tap fitted, large 12mm bore for fast emptying. | 2500W | 120V or 230V models available 50-60Hz | 12.5kg |
Product Dimensions
| Product Code | External Dimensions | Internal Dimensions | Water Level | Packed Dimensions |
| NE3-4DT | 332w x 185d x 290h mm | 300w x 150d x 150h mm | Maximum 130mm shelf fitted working depth 115mm | 38 x 23 x 29 cm |
| NE3-8DT | 332w x 270d x 290h mm | 300w x 240d x 150h mm | Maximum 130mm shelf fitted working depth 115mm | 38 x 23 x 29 cm |
| NE3-14DT | 361w x 332d x 290h mm | 325w x 300d x 150h mm | Maximum 130mm shelf fitted working depth 115mm | 45 x 41 x 32 cm |
| NE3-28DT | 538w x 332d x 290hmm | 500w x 300d x 200hmm | Maximum 180mm shelf fitted working depth 165mm | 60 x 40 x 33 cm |
| NE3-56DT | 660w x 540d x 290h mm | 620w x 500d x 200h mm | Maximum: 180mm shelf fitted working depth 165mm Minimum: 55mm shelf fitted working depth 40mm | 80 x 67 x 35 cm |
