      • Porous Teflon junction designed to be easy to clean and resist against blockages.
      • Robust epoxy body designed for tough applications.
      • Versatile refillable probe allowing different solutions for different applications and an extended life span.
      • A flat surface pH glass membrane is perfect for surface measurements or samples that may damage glass membranes.
      • Resistant to breakage due to very little glass exposed.

    Specifications

    Specification

    Body Type Epoxy
    pH Range 0 – 14
    Cable Length 1 metre
    Combination Yes
    Connector BNC
    Temperature Range 0 – 50°C
    Lower Shaft Length 90mm ± 2mm
    Lower Shaft Diameter 6mm
    E O Point 0 to ±25mV
    Junction Type Frit Ceramic
    Reference Type HgCl, Liquid filled, Single Junction
    Response Time <30 secs 95% FSD
    Shelf Life 12 months

    Ordering Information

    Code Description

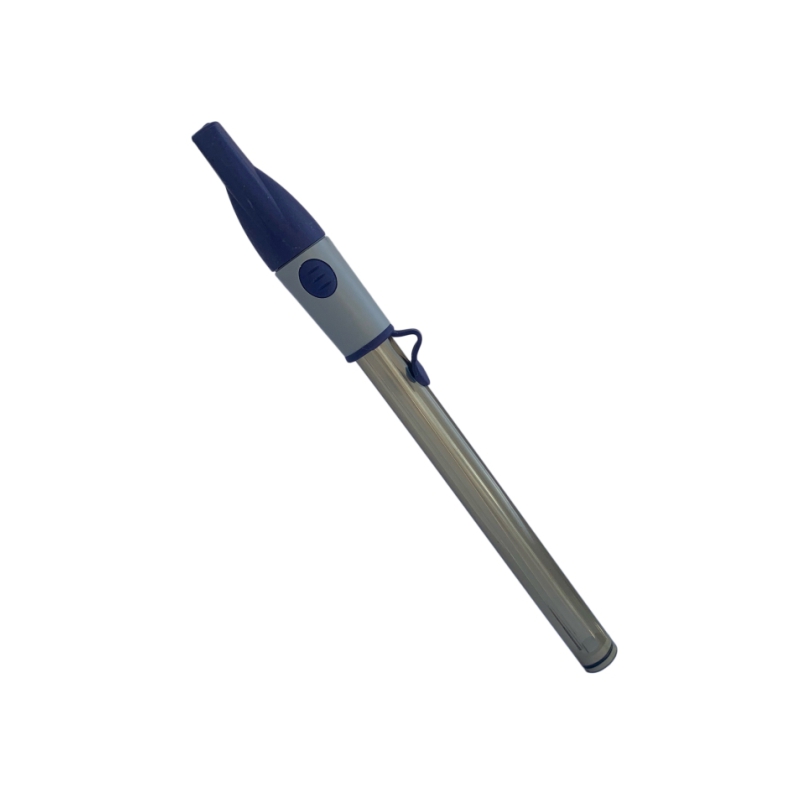

    GK-117-75 P17 FLAT HEAD COMBINATION PH ELECTRODE
