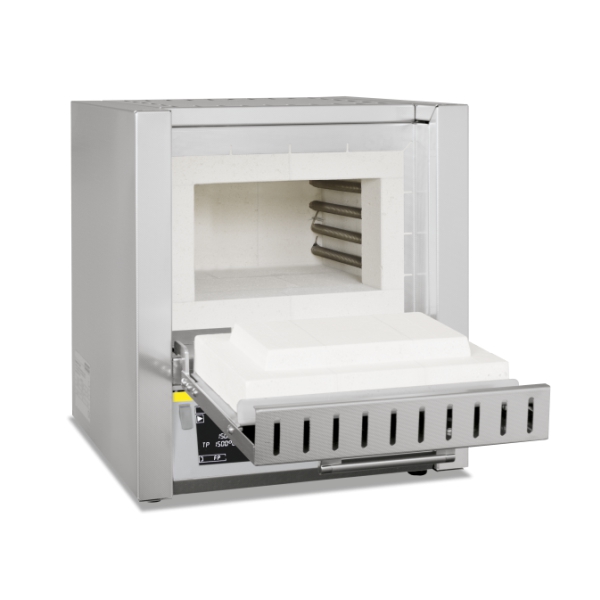

    Heating elements on support tubes radiating freely into the furnace chamber provide for particularly short heating times for these muffle furnaces. Thanks to their robust lightweight refractory brick insulation, they can reach a maximum working temperature of 1300 °C. These muffle furnaces thus represent an interesting alternative to the familiar L(T) ../12 models, when you need a higher application temperature.

    • Tmax 1300 °C · Heating from two sides · Heating elements on support tubes ensure free heat radiation and a long service life
    • Multi-layer insulation with robust lightweight refractory bricks in the furnace chamber
    • Optional flap door (L) which can be used as work platform or lift door (LT) with hot surface facing away from the operator
    • Adjustable air inlet in the furnace door · Exhaust air outlet in rear wall of furnace · Controller B410 (5 programs with each 4 segments)

    Features

    • Tmax 1300 °C
    • Heating from two sides
    • Heating elements on support tubes ensure free heat radiation and a long service life
    • Multi-layer insulation with robust lightweight refractory bricks in the furnace chamber
    • Dual shell housing made of textured stainless steel sheets with additional fan cooling for low surface temperature
    • Optional flap door (L) which can be used as work platform or lift door (LT) with hot surface facing away from the operator
    • Adjustable air inlet in the furnace door
    • Exhaust air outlet in rear wall of furnace
    • Controller B410 (5 programs with each 4 segments)
    • Solid state relays provide for low noise operation
    • Defined application within the constraints of the operating instructions
    • NTLog Basic for Nabertherm controller: recording of process data with USB-flash drive

    Specifications

    Model  L, LT 5/13  L, LT 9/13  L, LT 15/13
    Capacity, L  5  9  15
    Temp uniformity of +/- 5K, W  170  180  180
    Connected Load, kW  2.4  3.0  3.2
    Heating up time (mins)  60  60  70
    Ext. Dims2 WxDxH, mm  490x450x580+320  530x525x630+350  530x625x630+350
    Int. Dims WxDxH, mm  200x170x130  230x240x170  230x340x170
    Net Weight, Kg  42  60  70

    Ordering Information

    L-052S3RN3 Muffles Furnace with Brick Insulation and Flap Door 1300 Degrees with B410 Controller, 5 Litre
    L-092S3RN3 Muffles Furnace with Brick Insulation and Flap Door 1300 Degrees with B410 Controller, 9 Litre
    L-152S3RN3 Muffles Furnace with Brick Insulation and Flap Door 1300 Degrees with B410 Controller, 15 Litre
    L-052S3TN3 Muffles Furnace with Brick Insulation and Flap Door 1300 Degrees with C450 Controller, 5 Litre
    L-092S3TN3 Muffles Furnace with Brick Insulation and Flap Door 1300 Degrees with C450 Controller, 9 Litre
    L-152S3TN3 Muffles Furnace with Brick Insulation and Flap Door 1300 Degrees with C450 Controller, 15 Litre
    L-052T3RN3 Muffles Furnace with Brick Insulation and Lift Door 1300 Degrees with B410 Controller, 5 Litre
    L-092T3RN3 Muffles Furnace with Brick Insulation and Lift Door 1300 Degrees with B410 Controller, 9 Litre
    L-152T3RN3 Muffles Furnace with Brick Insulation and Lift Door 1300 Degrees with B410 Controller, 15 Litre
    L-052T3TN3 Muffles Furnace with Brick Insulation and Lift Door 1300 Degrees with C450 Controller, 5 Litre
    L-092T3TN3 Muffles Furnace with Brick Insulation and Lift Door 1300 Degrees with C450 Controller, 9 Litre
    L-152T3TN3 Muffles Furnace with Brick Insulation and Lift Door 1300 Degrees with C450 Controller, 15 Litre
