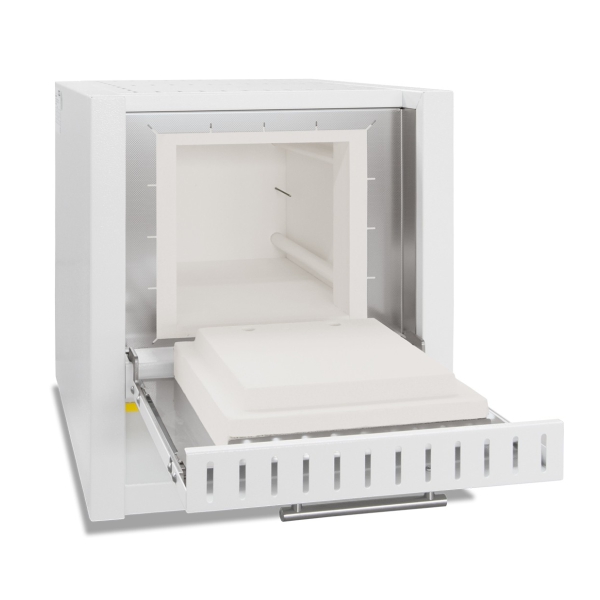

Nabertherm Economy Muffle Furnace (up to 1100C)

Nabertherm Economy Muffle Furnace (up to 1100C)

With their convincing price/performance ratio and the fast heat-up rates, these compact muffle furnaces are perfect for many applications in the laboratory. Quality features like the dual shell furnace housing of rust-free stainless steel, their compact, lightweight constructions, or the heating elements encased in quartz glass tubes make these models reliable partners for your application.

    Product

    Sku

    Name (required)

    Email (required)

    Phone (required)

    Message

    With their convincing price/performance ratio and the fast heat-up rates, these compact muffle furnaces are perfect for many applications in the laboratory. Quality features like the dual shell furnace housing of rust-free stainless steel, their compact, lightweight constructions, or the heating elements encased in quartz glass tubes make these models reliable partners for your application.

    • Tmax 1100 °C
    • Heating from two sides from heating elements protected in quartz glass tubes
    • Fast heating times (see table)
    • Maintenance-friendly replacement of heating elements and insulation
    • Housing coated in RAL · Flap door which can also be used as a work platform
    • Exhaust air outlet in rear wall · Compact dimensions and light weight · Controller mounted under the door to save space · Controller R7

    Features

    • Tmax 1100 °C
    • Heating from two sides from heating elements protected in quartz glass tubes
    • Fast heating times (see table)
    • Maintenance-friendly replacement of heating elements and insulation
    • Housing coated in RAL
    • Solid state relays provide for lownoise operation
    • Dual shell housing made of textured stainless steel sheets with additional fan cooling for low surface temperature
    • Exclusive use of insulation materials without categorization according to EC Regulation No. 1272/2008 (CLP)
    • Flap door which can also be used as a work platform
    • Exhaust air outlet in rear wall
    • Compact dimensions and light weight
    • Controller mounted under the door to save space
    • Controller R7
    • Defined application within the constraints of the operating instructions

    Additional Equipment

    • Chimney, chimney with fan or catalytic converter (not for LE 1 and LE 2)

    Specifications

    Model  LE 1/11  LE 2/11  LE 6/11  LE 14/11  LE 24/11
    Capacity, L  1  2  6  14  24
    Temp uniformity of +/- 5K, W  40  60  120  170  200
    Connected Load, kW  1.6  1.9  2.0  3.2  3.5
    Heating up time (mins)  10  15  30  35  40
    Ext. Dims2 WxDxH, mm  290x280x410  330x390x410  390x440x470  440x540x520  490x570x590
    Int. Dims WxDxH, mm  90x115x110  110x180x110  170x200x170  220x300x220  260x330x280
    Net Weight, Kg  10  15  30  35  40

    Ordering Information

    LE013K17N1 Compact Muffle Furnace 1100 degrees with R7 controller, 1 litre
    LE022K17N1 Compact Muffle Furnace 1100 degrees with R7 controller, 2 litre
    LE062K17N1 Compact Muffle Furnace 1100 degrees with R7 controller, 6 litre
    LE142K17N1 Compact Muffle Furnace 1100 degrees with R7 controller, 14 litre
