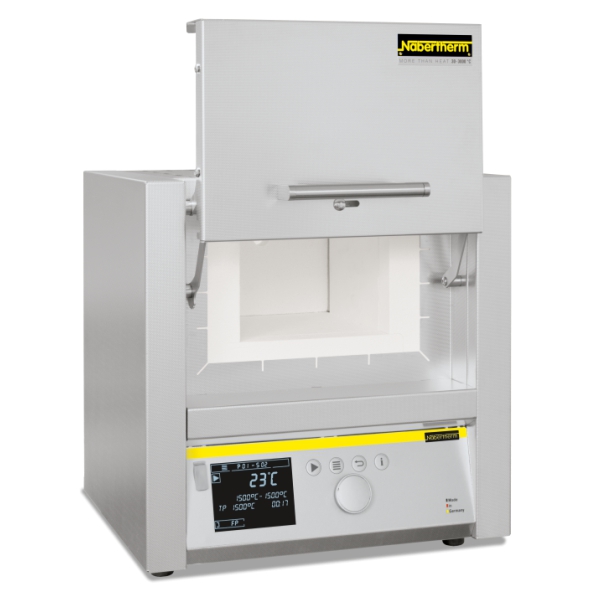

The muffle furnaces L 1/12 – LT 40/12 have been proven for daily laboratory use. These models stand out for their excellent workmanship, advanced and attractive design, and high level of reliability. The muffle furnaces come equipped with either a flap door or lift door at no extra charge.
Nabertherm Muffle Furnace (up to 1200C)
The muffle furnaces L 1/12 – LT 40/12 have been proven for daily laboratory use. These models stand out for their excellent workmanship, advanced and attractive design, and high level of reliability. The muffle furnaces come equipped with either a flap door or lift door at no extra charge.
- Heating from two sides by ceramic heating plates (heating from three sides for muffle furnaces L 24/12 – LT 40/12) for an optimal temperature uniformity
- Temperature uniformity of +/− 5 K with closed fresh-air inlet in empty workspace according to DIN 17052-1 at working temperatures above 800 °C
- Thermocouple type S (1200 °C)
- Ceramic heating plates with integral heating element which is safeguarded and easy to replace
- Optional flap door (L) which can be used as work platform or lift door (LT) with hot surface facing away from the operator
- Exhaust air outlet in rear wall of furnace
Features
- Tmax 1100 °C or 1200 °C
- Heating from two sides by ceramic heating plates (heating from three sides for muffle furnaces L 24/11 – LT 40/12) for an optimal temperature uniformity
- Temperature uniformity of +/− 5 K with closed fresh-air inlet in empty work space according to DIN 17052-1 at working temperatures above 800 °C
- Thermocouple type N (1100 °C) or type S (1200 °C)
- Ceramic heating plates with integral heating element which is safeguarded and easy to replace
- Optional flap door (L) which can be used as work platform or lift door (LT) with hot surface facing away from the operator
- Dual shell housing made of textured stainless steel sheets with additional fan cooling for low surface temperature
- Exclusive use of insulation materials without categorization according to EC Regulation No. 1272/2008 (CLP)
- Adjustable air inlet integrated in door (see illustration)
- Exhaust air outlet in rear wall of furnace
- Controller B410 resp. R7 for L 1/12 (5 programs with each 4 segments)
- Solid state relays provide for lownoise operation
- Defined application within the constraints of the operating instructions
- NTLog Basic for Nabertherm controller: recording of process data with USB-flash drive
Additional Equipment
- Chimney, chimney with fan or catalytic converter (not for L 1 and L 15)
- Over-temperature limiter with adjustable cutout temperature as temperature limiter to protect the oven and load
- Protective gas connection to purge with non-flammable protective or reaction gases (not available in combination with chimney, chimney with fan or catalytic converter) not gas tight
- Manual or automatic gas supply system
- Port for thermocouple in the rear wall or in the furnace door
- Process control and documentation via VCD software package for monitoring, documentation and control
- Charging rack with closed or perforated trays for loading the furnace in two levels incl. holder for inserting/removing the trays up to a max. temperature of 800 °C and a max. loading weight of 2 kg for the L(T) 9/11 respectively 3 kg for the L(T) 15/11
Specifications
| Model | L 1/12 | L(T) 3/12 | L(T) 5/12 | L(T) 9/12 | L(T) 15/12 | L(T) 24/12 | L(T) 40/12 |
| Capacity, L | 1 | 3 | 5 | 9 | 15 | 24 | 40 |
| Temp uniformity of +/- 5K, W | 45 | 110 | 170 | 180 | 180 | 230 | 270 |
| Connected Load, kW | 1.5 | 1.2 | 2.4 | 3.0 | 3.2 | 4.5 | 6.0 |
| Heating up time (mins) | 25 | 45 | 60 | 75 | 85 | 80 | 85 |
| Ext. Dims2 WxDxH3, mm | 290x280x430 | 385x330x405+155 | 385x390x460+205 | 415x455x515+240 | 415x555x515+240 | 490x555x580+320 | 530x705x580+320 |
| Int. Dims WxDxH, mm | 90x115x110 | 160x140x100 | 200x170x130 | 230x240x170 | 230x340x170 | 280x340x250 | 320x490x250 |
| Net Weight, Kg | 10 | 20 | 30 | 35 | 40 | 55 | 65 |
Ordering Information
| L-012K27N1 | Muffle Furnaces with Flap Door 1200 Degrees with R7 Contoller, 1 litre |
| L-032K2RN2 | Muffle Furnaces with Flap Door 1200 Degrees with B410 Contoller, 3 litre |
| L-052K2RN2 | Muffle Furnaces with Flap Door 1200 Degrees with B410 Contoller, 5 litre |
| L-092K2RN2 | Muffle Furnaces with Flap Door 1200 Degrees with B410 Contoller, 9 litre |
| L-152K2RN2 | Muffle Furnaces with Flap Door 1200 Degrees with B410 Contoller, 15 litre |
| L-242K2RN2 | Muffle Furnaces with Flap Door 1200 Degrees with B410 Contoller, 24 litre |
| L-402K2RN2 | Muffle Furnaces with Flap Door 1200 Degrees with B410 Contoller, 40 litre |
| L-032K2TN2 | Muffle Furnaces with Flap Door 1200 Degrees with C450 Contoller, 3 litre |
| L-052K2TN2 | Muffle Furnaces with Flap Door 1200 Degrees with C450 Contoller, 5 litre |
| L-092K2TN2 | Muffle Furnaces with Flap Door 1200 Degrees with C450 Contoller, 9 litre |
| L-152K2TN2 | Muffle Furnaces with Flap Door 1200 Degrees with C450 Contoller, 15 litre |
| L-242K2TN2 | Muffle Furnaces with Flap Door 1200 Degrees with C450 Contoller, 24 litre |
| L-402K2TN2 | Muffle Furnaces with Flap Door 1200 Degrees with C450 Contoller, 40 litre |
| L-032H2RN2 | Muffle Furnaces with Lift Door 1200 Degrees with B410 Contoller, 3 litre |
| L-052H2RN2 | Muffle Furnaces with Lift Door 1200 Degrees with B410 Contoller, 5 litre |
| L-092H2RN2 | Muffle Furnaces with Lift Door 1200 Degrees with B410 Contoller, 9 litre |
| L-152H2RN2 | Muffle Furnaces with Lift Door 1200 Degrees with B410 Contoller, 15 litre |
| L-242H2RN2 | Muffle Furnaces with Lift Door 1200 Degrees with B410 Contoller, 24 litre |
| L-402H2RN2 | Muffle Furnaces with Lift Door 1200 Degrees with B410 Contoller, 40 litre |
| L-032H2TN2 | Muffle Furnaces with Lift Door 1200 Degrees with C450 Contoller, 3 litre |
| L-052H2TN2 | Muffle Furnaces with Lift Door 1200 Degrees with C450 Contoller, 5 litre |
| L-092H2TN2 | Muffle Furnaces with Lift Door 1200 Degrees with C450 Contoller, 9 litre |
| L-152H2TN2 | Muffle Furnaces with Lift Door 1200 Degrees with C450 Contoller, 15 litre |
| L-242H2TN2 | Muffle Furnaces with Lift Door 1200 Degrees with C450 Contoller, 24 litre |
| L-402H2TN2 | Muffle Furnaces with Lift Door 1200 Degrees with C450 Contoller, 40 litre |
