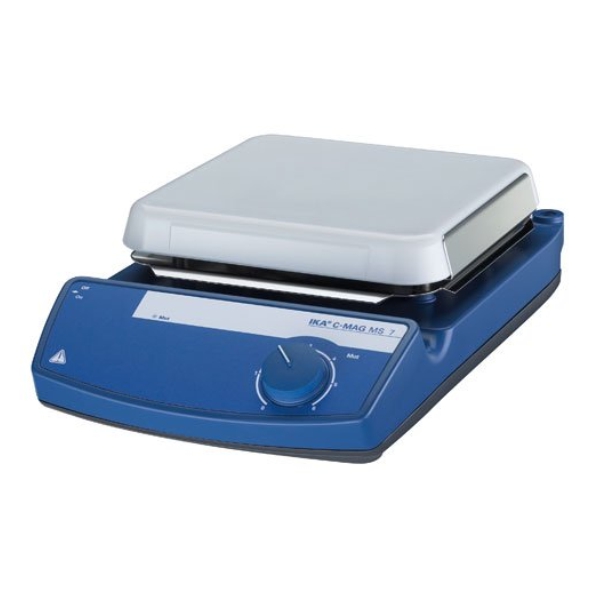

C-MAG MS 7

Magnetic stirrer without heating. With ceramic set-up plate which offers excellent chemical resistance.

Category:
WHERE TO BUY
GO BACK

    Product

    Sku

    Name (required)

    Country (required)

    Company

    Email (required)

    Message

    • Powerful motor for stirring quantities of up to 10 l (H2O)
    • Elevated control panel for protection against leaking liquids
    • Speed range: 100 – 1500 rpm

    Technical Details

    Number of stirring positions 1
    Stirring quantity max. per stirring position (H2O) 10 l
    Motor rating output 1.5 W
    Direction of rotation left
    Speed control scale 0 – 6
    Speed range 100 – 1500 rpm
    Stirring bar length max. 80 mm
    Set-up plate material ceramic
    Set-up plate dimensions 180 x 180 mm
    Dimensions (W x H x D) 220 x 105 x 335 mm
    Weight 5 kg
    Permissible ambient temperature 5 – 40 °C
    Permissible relative humidity 80 %
    Protection class according to DIN EN 60529 IP 21
    Voltage 230 / 120 / 100 V
    Frequency 50/60 Hz
    Power input 30 W

    Ordering information

    0003582402 C-MAG MS 7
    0003582400 C-MAG MS 7, Euro plug
