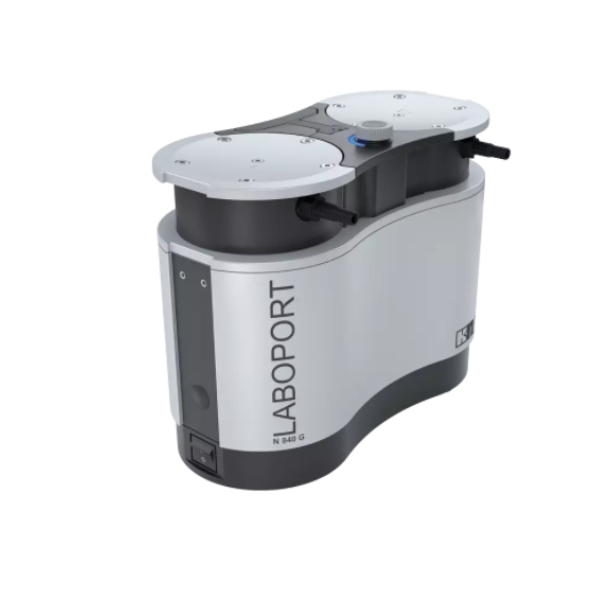

Chemically resistant, compact and oil-free diaphragm vacuum pump with manual speed control for adjusting the pump capacity to your specific application.
- Flow Rate (max.): 34 l/min
- Ultimate Vacuum (max.): 6 mbar (abs.)
- Adjustable speed control
- ATEX compliant to (Ex) II 2/-G IIB+H2 T3 internal atmosphere only
- Ideal for extremely aggressive/corrosive gases and vapors
- Chemically-resistant PTFE/FFPM flowpath
- It features a gas ballast, PTFE/TFM heads, PTFE-coated diaphragms and FFPM valves.
- Suitable for a wide range of Laboratory applications including extremely aggressive/corrosive gasses and vapors.
Features
- Adjustable speed control
- ATEX compliant to (Ex) II 2/-G IIB+H2 T3 internal atmosphere only
- Ideal for extremely aggressive/corrosive gases and vapors
- Chemically-resistant PTFE/FFPM flowpath
- Clean, 100% oil-free operation
- Compact, quiet and reliable
- Maintenance-free
- Small footprint to optimize workspace
Specifications
- Flow Rate (max.): 34 l/min
- Ultimate Vacuum (max.): 6 mbar (abs.)
- Pressure (max.): 0.1 bar (rel.)
- Weight: 11.3 kg
- Permissible Media Temperature: 5–40 °C
- Permissible Ambient Temperature: 5–40 °C
- Valve Material: FFPM
- Diaphragm Material: PTFE coated
- Pump Head Material: PTFE
Applications
- Centrifugal concentration
- Degassing
- Desiccation
- Distillation
- Gel drying
- Rotary evaporation
- Solid-phase extraction
