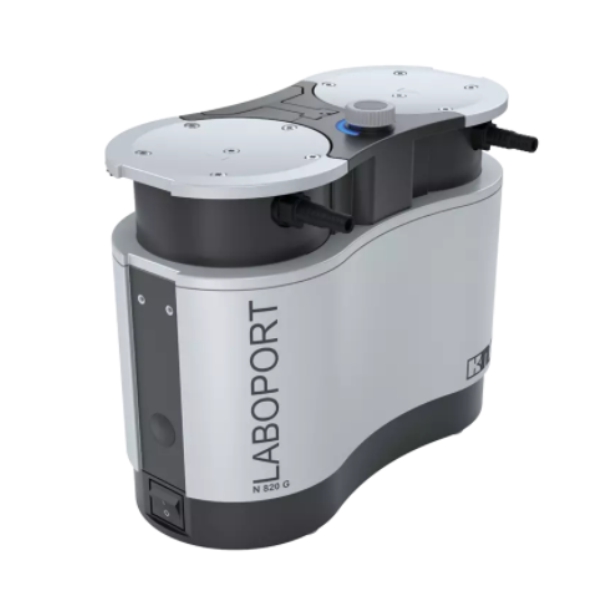

LABOPORT® N 820 G

Chemically resistant, compact and oil-free diaphragm vacuum pump with manual speed control for adjusting the pump capacity to your specific application.

Category:
MAKE A BUYING ENQUIRY
WHERE TO BUY
GO BACK

    Product

    Sku

    Name (required)

    Country (required)

    Company

    Email (required)

    Message

    • Flow Rate (max.): 20 l/min
    • Ultimate Vacuum (max.): 6 mbar (abs.)
    • Adjustable speed control
    • ATEX compliant to (Ex) II 2/-G IIB+H2 T3 internal atmosphere only
    • Ideal for extremely aggressive/corrosive gases and vapors
    • Clean, 100% oil-free operation
    • It features a gas ballast, PTFE/TFM heads, PTFE-coated diaphragms and FFPM valves.
    • Suitable for a wide range of Laboratory applications including extremely aggressive/corrosive gasses and vapors.

    Features

    • Adjustable speed control
    • ATEX compliant to (Ex) II 2/-G IIB+H2 T3 internal atmosphere only
    • Ideal for extremely aggressive/corrosive gases and vapors
    • Clean, 100% oil-free operation
    • Maintenance-free
    • Small footprint to optimize workspace

    Specifications

    • Flow rate (max.): 21l/min
    • Ultimate Vacuum (max.): 2 mbar (abs.)
    • Pressure (max.): 0.5 bar (rel.)
    • Weight: 9.5 kg
    • Permissible Media Temperature: 540 °C
    • Permissible Ambient Temperature: 1040 °C
    • Valve Material: FFPM
    • Diaphragm Material: PTFE coated
    • Pump Head Material: PPS

    Applications

    • Centrifugal concentration
    • Rotary evaporation
    • Solid-phase extraction
    • Desiccation
    • Distillation
    • Degassing
