Innovative incubator shaker design allowing unattended operation in a temperature-controlled environment.

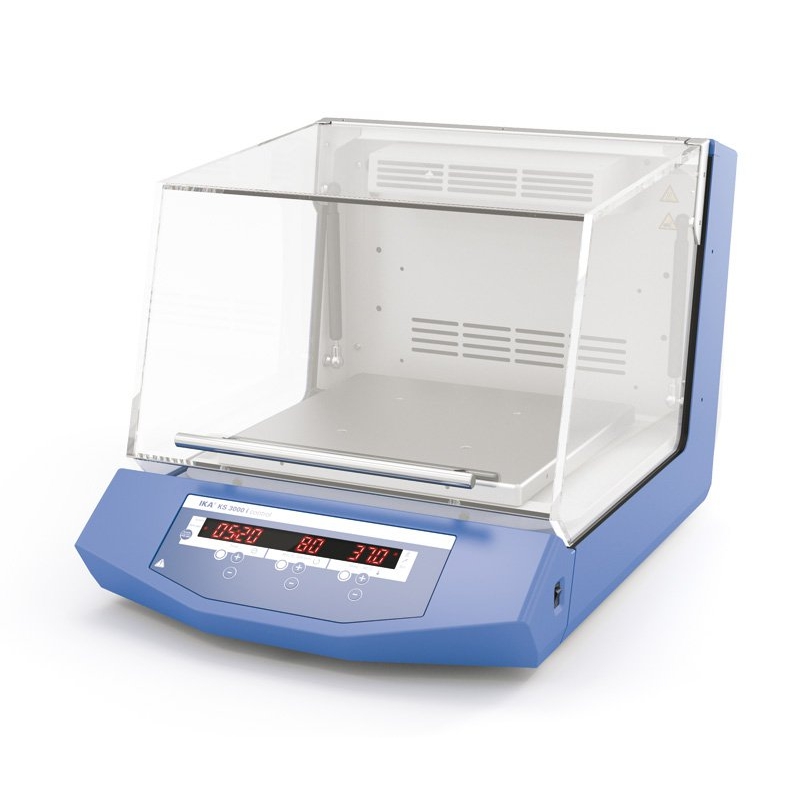

Control Incubator Shaker
- Large LED display for speed and time settings
- Controls with antimicrobial coating for reduction of bacteria
- Integrated PID temperature control (use of two PT 1000 temperature sensors)
- Junction box in the workspace for connection of an additional temperature sensor e.g. PT 1000.60
- Electronic temperature and speed control
- Electronic timer switch: 0 – 999 h (set by the minute or by the hour)
- Optional built-in cooler for connection to an external cooling unit e.g. RC 2 basic / control
- Unit switches off automatically if disturbed
- Unit stops automatically when hood is lifted
- Collecting tray with drain hose on rear of unit
- Simple operation
- All functions can be controlled and documented with labworldsoft®
- Attachments are not included in delivery, please order seperatly
Additional information
| Weight | 35 kg |
|---|---|
| Dimensions | 695 × 465 × 430 mm |
| Varient | UK, Europe |
Features
| Type of movement | orbital |
| Shaking stroke | 20 mm |
| Permissible shaking weight (incl. attachment) | 7.5 kg |
| Motor rating input | 45 W |
| Motor rating output | 10 W |
| Permissible ON time | 100 % |
| Speed min (adjustable) | 10 rpm |
| Speed range | 10 – 500 rpm |
| Speed display | LED |
| Speed deviation | 1 % |
| Speed control | 1 RPM steps |
| Timer | yes |
| Timer display | 7 segment LED |
| Time setting min. | 1 s |
| Time setting range | 1 – 59940 min |
| Operating mode | timer and continuous operation |
| Heating temperature range | room temp. +5° – 80 °C |
| Heat output | 1000 W |
| Set temperature resolution | 0.1 ±K |
| Control accuracy with sensor (1 vessel 0.5 L H2O, RT 22°C, T=37°C) | 0.5 ±K |
| Temperature display | yes |
| Temp. stability (0,2l H2O; RT 25°C, T=37°C) | 0.1 ±K |
| Operating area inner chamber | 330 x 330 x 258 mm |
| Total volume inner chamber | 50 l |
| Raw material housing | Sheet metal powder coat |
| Raw material hood | PMMA |
| Raw material front foil | polyester |
| Raw material front panel | ABS painted |
| Temperature stability (1 vessel 0.5 L, RT 25°C, T=37°C) | 0.05 ±K |
| Temperature homogenity (5 vessel 0.5 L; RT 25°C, T=37°C) | 0.5 ±K |
| Height with open hood | 875 mm |
| Dimensions (W x H x D) | 465 x 430 x 695 mm |
| Weight | 35 kg |
| Permissible ambient temperature | 15 – 32 °C |
| Permissible relative humidity | 80 % |
| Protection class according to DIN EN 60529 | IP 30 |
| RS 232 interface | yes |
| USB interface | yes |
| Voltage | 230 / 115 / 100 V |
| Frequency | 50/60 Hz |
| Power input | 1120 W |
Ordering information
| Code | Description | Temp Range | Speed range, rpm | External Dims WxDxH mm |
| 0003940002 | KS 3000 i control Incubator shaker | RT+50°C to 80°C | 10-500 | 465x430x695 |
| 0003940102 | KS 3000 ic control Incubator shaker, built-in cooler | RT+50°C to 80C | 10-500 | 465x430x695 |
| 0003510002 | KS 4000 i control Incubator shaker | RT+50°C to 80°C | 10-500 | 580x520x750 |
| 0003510102 | KS 4000 ic control Incubator shaker, built-in cooler | RT+50°C to 80°C | 10-500 | 580x520x750 |
