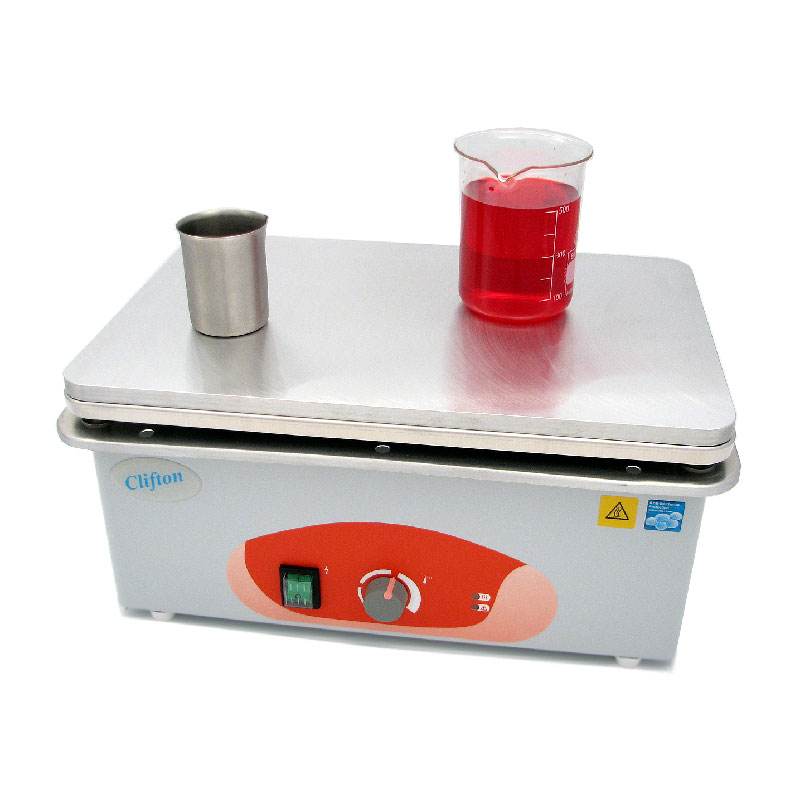

Hotplates HP1 Range (Analogue)

ENQUIRE ABOUT BUYING THIS PRODUCT

These analogue hotplates feature a generous working area, thermostatically controlled, with an illuminated on/off switch, heater and Hot warning indicator.

Featuring a hob surface, which overlaps the body to ensure that no spillages enter the controls. The hob is solid aluminium, 12mm thick for excellent thermal properties and uniform heat distribution over its working area.

Painted surfaces and the control panel have an antibacterial protection and are also all chemical resistant wipe clean surfaces. Hob temperature can be adjusted using the control dial.

Sand bath kits allow samples to be directly immersed in a dry and high temperature environment, see accessories. Also these Hotplates accept standard laboratory retort rods which enable scaffolding to be constructed so that vessels can be heated without direct contact with hot surface.

Product Information

Product Code	Dimensions	Temp Range	Temp Setting	Sensitivity	Hob Maximum Load, Guidance	Retort Points	Heater Power (220-240V)	Voltage	Packed Weight
HP1-1	External: 325w x 260d x 200h mm Hob dimensions: 305w x 240d mm Packed: 33 x 27 x 20cm	ambient +10° – 320°C	analogue dial	±10°C @ 150°C	8kg @ maximum 300°CMass evenly spread across Hob	single M10 fixing point, rear hotplate	Single M10 fixing point, rear hotplate	1000W	230V
HP1-2	External: 477w x 325d x 200h mm Hob dimensions: 457w x 305d mm Packed: 53 x 21 x 38cm	ambient +10° – 320°C	analogue dial	±10°C @ 150°C	8kg @ maximum 300°CMass evenly spread across Hob	double M10 fixing points, rear hotplate	2000W	230V	13.5kg
HP1-3	External: 706w x 325d x 200h mm Hob dimensions : 686w x 305d mm Packed: 81 x 36 x 44 cm	ambient +10° – 320°C	analogue dial	±10°C @ 150°C	8kg @ maximum 300°CMass evenly spread across Hob	double M10 fixing points, rear hotplate	2400W	230V	22kg

Safety Features

HOT warning indicator when hob exceeds 60°C.

Fitted with non-slip rubber feet for safety.

Hob overlaps the body to reduce chance spillages enter the controls.

Features and Benefits

1. Solid aluminium top plate with excellent thermal properties.
2. Choice of three sizes suiting your needs for either large hotplate working area down to a small size unit.
3. Featuring and on/off mains switch and heater on indicator.
4. The hob overlaps the base ensuring spillages do not ingress into the controls.
5. Easily converted into a sand bath with accessory kit for direct immersion of samples.
6. Accepts laboratory scaffolding.
7. Hob maximum temperature 320°C.
8. Fitted with non-slip rubber feet for safety.
9. Fitted with an IP rated clear booted on/off mains switch preventing ingress of moisture.
10. Easy to clean hob.
11. Sturdy construction – powder coated exterior providing a durable chemical resistant.
12. Built to latest safety standards and supplied with comprehensive operating instructions and Three-year warranty.
13. Each hotplate is uniquely identified with its own serial number recorded on our product database, which includes all of its manufacturing inspection data. Electrically tested for safety at final inspection and a test certificate
