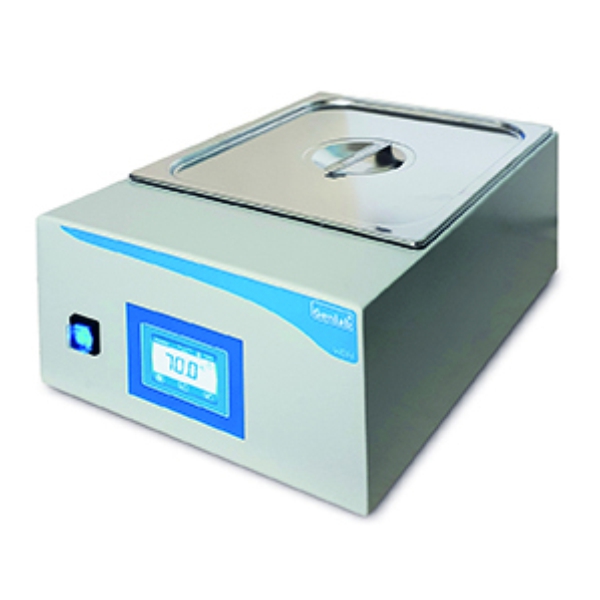

GenLab Prime Unstirred Water Bath

Home/General Laboratory Equipment/GenLab Prime Unstirred Water Bath

GenLab Prime Unstirred Water Bath

The Prime WBH are the flagship brand of GenLab waterbaths. They are built to the highest standards and are packed with features and enhancements.

It features our latest touch screen control system which offers intuitive control designed for laboratory use. With a resolution of 0.1ºC, on screen trending, profile control and integral timers, this range of water baths help to maximise productivity.

Category:
WHERE TO BUY
GO BACK

    Product

    Sku

    Name (required)

    Country (required)

    Company

    Email (required)

    Message

    Unstirred Water Bath Design

    The exterior is constructed from sheet steel finished in an easy clean powder coated paint. It is fitted with a stainless steel interior bath which will allow filling up to 90% total volume. Each bath is supplied with stainless steel base tray. Heating is applied to the base of the bath, which enhances temperature uniformity and optimises internal spaces.

    Heating

    Heated by silicone heater mats with integral safety shut down if detecting dry boil conditions. Please note these baths are not designed to dry boil so always ensure water is in the bath before you turn on.

    Controls

    The control system comprises of a bespoke touch screen user interface, that offers both accurate temperature control and an integral overheat system by using 2 individual Pt100 sensors. Advanced features can be turned on and off to suit bespoke heating applications and tailored to customer preference. Temperature trending is displayed for up to 48 hours and optional upgrades are available for alarm outputs.

    Features

    • 5 sizes: 8 to 54 litres
    • Temperature range 25.0ºC to 80.0ºC (without lid)
    • Temperature range 25.0ºC to 100.0ºC (with lid)
    • 3 Stage timer modes, count down timer, 8 stage profile or real time clock mode
    • Easy clean powder coated body
    • Stainless steel tank
    • 3.2in touch screen PID interface control
    • On screen historical trending (48 hours)
    • Manual or auto reset overheat control
    • High accuracies Pt100B duplex sensors <0.8ºC
    • 0.1ºC resolution
    • Energy efficient with integral energy meter
    • New – Set point lock feature

    Options

    • 10 Menu x 8 Stage Profile Controller with Cyclic feature – 10PRO
    • Stainless steel flat lids

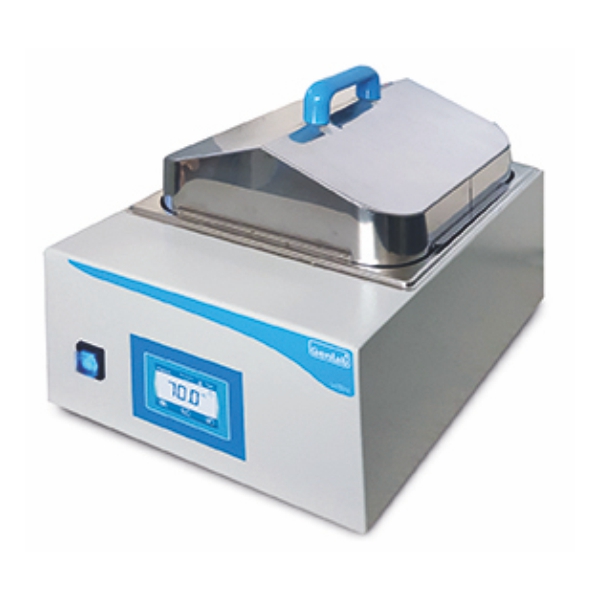

    • Gabled lids
    • Audible warning alarms
    • Stainless steel external body
    • Traceable calibration to national standards
    • Drain valve and tap
    • Extended warranty

    Specifications

    Genlab ref.
    Number
    Capacity
    (approx litres)
    Internal dims.
    (D x W x L cms)
    External dims.
    (H x W x L cms)
    Wattage
    Voltage
    Weight
    (kg)
    PWBH8/TDIG
    8.1
    20 x 30 x 15
    27 x 33 x 29
    400
    230
    6
    PWBH13/TDIG
    12.5
    15 x 30 x 32
    22 x 33 x 47
    800
    230
    7
    PWBH18/TDIG
    17.3
    20 x 30 x 32
    27 x 33 x 47
    800
    230
    9
    PWBH27/TDIG
    27
    20 x 30 x 50
    27 x 33 x 65
    1200
    230
    11
    PWBH54/TDIG
    53.8
    20 x 49 x 61
    28 x 66 x 65
    2400
    230
    25
