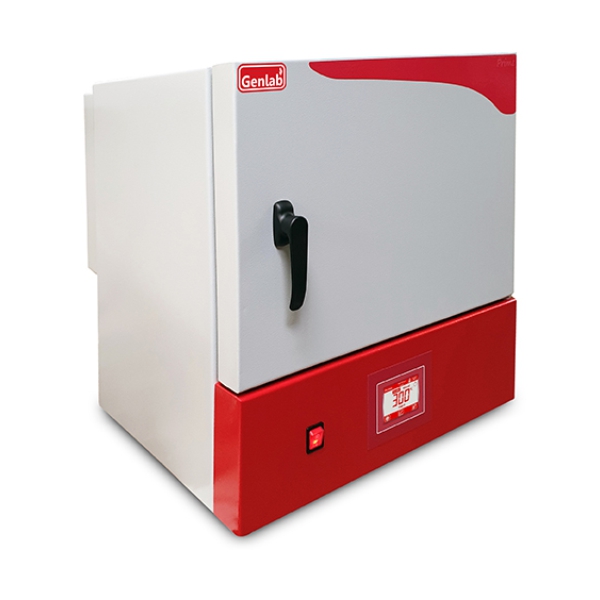

Genlab Prime Oven

The GENLAB range of Prime Ovens are the flagship brand of Genlab Ovens. They are built to the highest standards and packed with many features and enhancements. As standard, the Prime range offers a heavy duty stainless steel interior, increased accuracies on our standard models and are quicker responding. This range can offer increased load capability, multiple reinforced shelves and operate at 300 ºC continuously. It features our latest touch screen control system which offers intuitive control, designed for industrial and laboratory ovens

Category:
WHERE TO BUY
GO BACK

    Product

    Sku

    Name (required)

    Country (required)

    Company

    Email (required)

    Message

    Prime Oven Design

    The exterior is constructed from sheet steel finished in an easy clean powder coated paint.

    The interior chamber is made from stainless steel.

    The units are fitted with fixed shelf runners and removable chrome plated wire grid shelves.

    Prime Oven Heating

    The units are heated by Incoloy sheathed elements positioned around the fan fitted at the back of the chamber.

    Prime Oven Controls

    The control system comprises of a bespoke touch screen interface that offers both accurate temperature control and an integral overheat system by using 2 individual Pt100 sensors. Advanced features can be turned on and off to suit bespoke heating applications and tailored to customer preference. Oven trending is displayed for up to 48 hours and optional upgrades are available for alarm outputs.

    Features

    • 7 sizes 30 to 200 litres
    • Stainless Steel Internal Chamber
    • Temperature range: 40ºC to 250ºC (300ºC option)
    • On screen historical trending (48 hours)
    • Count down timer
    • 24/7 real time clock operation
    • Manual or automatic overheat reset
    • High accuracy Pt100A duplex sensor <0.6ºC
    • Fan assisted circulation
    • Excellent stability <+/- 0.5ºC
    • Low chamber uniformity
    • Quick responding
    • Energy efficient with integral energy meter
    • New – Set point lock feature

    Options

    • 300ºC Continuous temperature rating
    • 10 Menu x 8 Stage Profile Controller with Cyclic feature
    • Reinforced shelving (upto 40KG)
    • Reinforced total load
    • Access ports (25, 50, 75 or 100mm)
    • Traceable calibrations to national standards
    • Bespoke standads and stacking kits
    • Extractor Unit
    • Audible warnings
    • Extended warranty
    • Bespoke solutions available upon request

    Prime Oven Specifications

    Genlab ref.
    Number
    Capacity
    (litres)
    Internal dims.
    (H x W x D cms)
    External dims.
    (H x W x D cms)
    No. of
    Shelves
    No. shelf
    positions
    Wattage/
    Voltage
    Weight
    (kg)
    PRO/30/TDIG
    30
    24 x 36 x 35
    57 x 50 x 62
    2
    2
    1000/230
    30
    PRO/50/TDIG
    53
    33 x 49 x 33
    66 x 63 x 59
    2
    3
    1000/230
    40
    PRO/75/TDIG
    73
    33 x 49 x 45
    66 x 63 x 72
    2
    3
    1500/230
    60
    PRO/100/TDIG
    99
    45 x 49 x 45
    78 x 63 x 72
    3
    4
    1500/230
    70
    PRO/125/TDIG
    120
    55 x 49 x 45
    88 x 63 x 72
    3
    5
    2000/230
    75
    PRO/150/TDIG
    143
    55 x 49 x 53
    88 x 63 x 80
    3
    5
    2000/230
    80
    PRO/200/TDIG
    195
    75 x 49 x 53
    108 x 63 x 80
    4
    7
    2500/230
    105
