Benchtop Oven Design
The exterior is constructed from sheet steel and finished in an easy clean powder coated paint. The interior chamber is made from mild steel coated with aluminium (CLAD), with a stainless steel (SS) chamber available as an option.
They are fitted with fixed shelf runners and removable chrome plated wire grid shelves.
Benchtop Oven Heating
Heated by Incoloy sheathed elements; positioned in the base of the oven on all natural convection ranges. Fan assisted ranges have elements in the rear on base mount designs and in the side on side mount designs.
The 200 litre units have fan circulation as standard.
Benchtop Oven Controls
The control system comprises of a bespoke touch screen interface that offers both accurate temperature control and an integral overheat system using 2 individual Pt100 sensors. Advanced features can be turned on and off to suit bespoke heating applications and tailored to customer preference. Oven trending is displayed for up to 48 hours and optional upgrades are available for alarm outputs
Information
The GenLab range of Dual Purpose Ovens / Incubators combine the advantage of two temperature ranges in the same unit. Using bespoke firmware designed specifically for this chamber size, and a calibration class temperature sensor, we can offer accurate control up to 250.0ºC without temperature overshoot. The same chamber can also maintain a steady 30.0ºC constant temperature by simply adjusting the set point. Available in a variety of sizes and designed with both side or base mounted displays to suit your exact needs.
Features
- 10 sizes 6 to 200 litres (base mount controller design)
- 6 sizes 50 to 200 litres (side mount controller design)
- Temp range (Ambient +8ºC) to 250.0ºC
- Resolution 0.1ºC
- On screen historical trending (48 hours)
- Manual or automatic overheat reset
- High accuracy Pt100A duplex sensors<0.6ºC
- Excellent stability <+/-0.6ºC (fan assisted)
- Low chamber uniformity
- Energy efficient with integral energy meter
- New – Set point lock feature
- Fan assisted circulation (not available <30L)
- Stainless steel chamber
- 8 Stage profile control
- Count down timer
- 24/7 real time clock operation
- 10 Menu x 8 Stage Profile Controller with Cyclic feature
- Access ports (25, 50, 75 or 100mm)
- Audible warnings
- Traceable calibrations to national standards
- Bespoke stands and stacking kits
- Extractor unit
- Extended warranty
- Explosion relief panels (DP style only)
- Bespoke solutions available upon request
Benchtop Oven Dimensions
| Genlab ref. Number |
Capacity
(litres) |
Internal dims. Natural Convection
|
External dims. |
Internal dims. External dims. |
No of
Shelves..
Positions
|
Wattage
|
Weight
(kg) |
|
|
Natural Convection
|
Fan assisted
|
Fan assisted
|
||||||

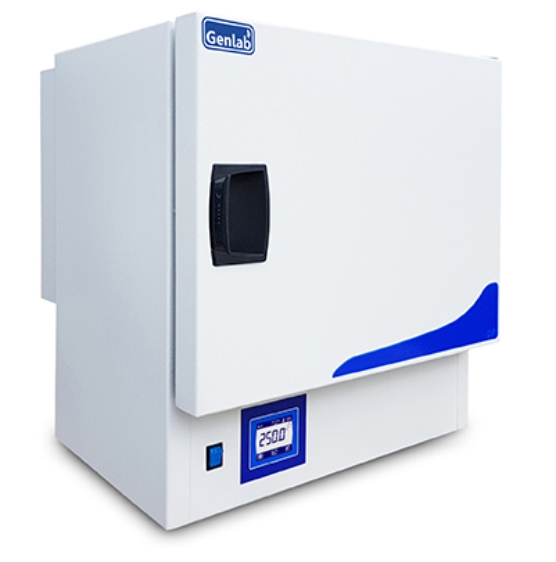

| Base mount designs |
(H x W x D cms)
|
(H x W x D cms) | (H x W x D cms) |
(H x W x D cms)
|
||||
| MINIS/6/TDIG | 6 | 15 X 23 X 19 | 46 x 35 x 33 | N/A | N/A | 1..1 | 350 | 16 |
| MINIS/18/TDIG | 18 | 26 x 26 x 27 | 55 x 38 x 41 | N/A | N/A | 1..1 | 500 | 21 |
| MINIS/30/TDIG |
30
|
24 x 36 x 35
|
51 x 48 x 49 |
24 x 36 x 31
|
51 x 48 x 63
|
2..2
|
750 |
30
|
| MINIS/40/DIG |
40
|
32 x 36 x 35
|
54 x 48 x 49
|
32 x 36 x 31
|
54 x 48 x 63
|
2..3
|
750
|
35
|
| MINIS/50/DIG |
53
|
33 x 49 x 33
|
66 x 63 x 47
|
33 x 49 x 29
|
66 x 63 x 61
|
2..3
|
750
|
45
|
| MINIS/75/DIG |
73
|
33 x 49 x 45
|
66 x 63 x 60
|
33 x 49 x 41
|
66 x 63 x 74
|
2..3
|
1000
|
55
|
| MINIS/100/DIG |
99
|
45 x 49 x 45
|
78 x 63 x 60
|
45 x 49 x 41
|
78 x 63 x 74
|
3..4
|
1000
|
60
|
| MINIS/125/DIG |
121
|
55 x 49 x 45
|
88 x 63 x 60
|
55 x 49 x 41
|
88 x 63 x 74
|
3..5
|
1500
|
65
|
| MINIS/150/DIG |
143
|
55 x 49 x 53
|
88 x 63 x 68
|
55 x 49 x 49
|
88 x 63 x 82
|
3..5
|
1500
|
70
|
| MINIS/200/F/DIG |
180
|
N/A
|
N/A
|
75 x 49 x 49
|
108 x 63 x 84
|
4..7
|
2000
|
75
|

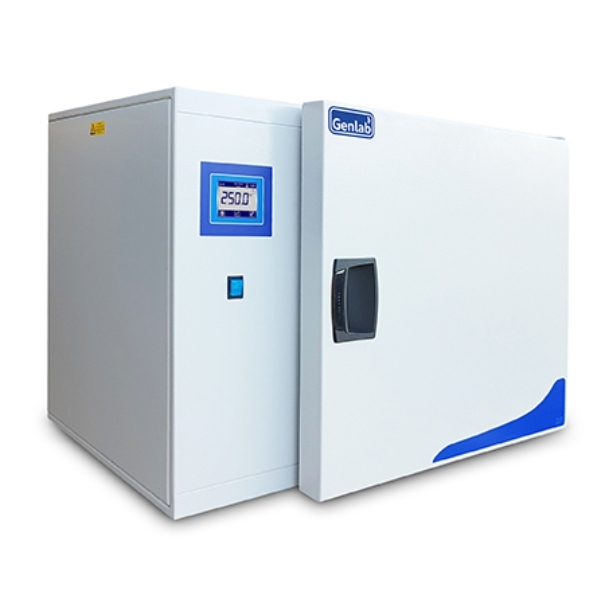

| Side mount designs | ||||||||
| DP/50/TDIG | 58 | 42 x 40 x 35 | 58 x 73 x 48 | 45 x 36 x 35 | 58 x 73 x 48 | 2..3 | 750 | 35 |
| DP/75/TDIG | 78 | 42 x 53 x 35 | 58 x 85 x 48 | 45 x 49 x 35 | 58 x 85 x 48 | 2..3 | 1000 | 45 |
| DP/100/TDIG | 102 | 42 x 53 x 46 | 58 x 85 x 59 | 45 x 49 x 40 | 58 x 85 x 59 | 3..4 | 1000 | 55 |
| DP/125/TDIG | 126 | 52 x 53 x 46 | 69 x 85 x 59 | 55 x 49 x 46 | 69 x 85 x 59 | 3..5 | 1500 | 65 |
| DP/150/TDIG | 149 | 52 x 53 x 54 | 69 x 85 x 67 | 55 x 49 x 54 | 69 x 85 x 67 | 3..5 | 1500 | 70 |
| DP/200/TDIG | 198 | N/A | N/A | 75 x 49 x 54 | 89 x 85 x 67 | 4..7 | 2000 | 90 |
Ordering Information
| MINIS/6/TDIG | Dual-Purpose Benchtop Incubator/Oven Standard Interior, 6 litre |
| MINIS/18/TDIG | Dual-Purpose Benchtop Incubator/Oven Standard Interior, 18 litre |
| MINIS/30/TDIG | Dual-Purpose Benchtop Incubator/Oven Standard Interior, 30 litre |
| MINIS/30/TDIG/F | Dual-Purpose Benchtop Incubator/Oven Standard Interior, 30 litre with Fan |
| MINIS/40/TDIG | Dual-Purpose Benchtop Incubator/Oven Standard Interior, 40 litre |
| MINIS/40/TDIG/F | Dual-Purpose Benchtop Incubator/Oven Standard Interior, 40 litre with Fan |
| MINIS/50/TDIG | Dual-Purpose Benchtop Incubator/Oven Standard Interior, 50 litre |
| MINIS/50/TDIG/F | Dual-Purpose Benchtop Incubator/Oven Standard Interior, 50 litre with Fan |
| MINIS/75/TDIG | Dual-Purpose Benchtop Incubator/Oven Standard Interior, 75 litre |
| MINIS/75/TDIG/F | Dual-Purpose Benchtop Incubator/Oven Standard Interior, 75 litre with Fan |
| MINIS/100/TDIG | Dual-Purpose Benchtop Incubator/Oven Standard Interior, 100 litre |
| MINIS/100/TDIG/F | Dual-Purpose Benchtop Incubator/Oven Standard Interior, 100 litre with Fan |
| MINIS/125/TDIG | Dual-Purpose Benchtop Incubator/Oven Standard Interior, 125 litre |
| MINIS/125/TDIG/F | Dual-Purpose Benchtop Incubator/Oven Standard Interior, 125 litre with Fan |
| MINIS/150/TDIG | Dual-Purpose Benchtop Incubator/Oven Standard Interior, 150 litre |
| MINIS/150/TDIG/F | Dual-Purpose Benchtop Incubator/Oven Standard Interior, 150 litre with Fan |
| MINIS/200/F/TDIG | Dual-Purpose Benchtop Incubator/Oven Standard Interior, 200 litre |
| MINIS/6/TDIG/SS | Dual-Purpose Benchtop Incubator/Oven Stainless Steel Interior, 6 litre |
| MINIS/18/TDIG/SS | Dual-Purpose Benchtop Incubator/Oven Stainless Steel Interior, 18 litre |
| MINIS/30/TDIG/SS | Dual-Purpose Benchtop Incubator/Oven Stainless Steel Interior, 30 litre |
| MINIS/30/TDIG/SS/F | Dual-Purpose Benchtop Incubator/Oven Stainless Steel Interior, 30 litre with Fan |
| MINIS/40/TDIG/SS | Dual-Purpose Benchtop Incubator/Oven Stainless Steel Interior, 40 litre |
| MINIS/40/TDIG/SS/F | Dual-Purpose Benchtop Incubator/Oven Stainless Steel Interior, 40 litre with Fan |
| MINIS/50/TDIG/SS | Dual-Purpose Benchtop Incubator/Oven Stainless Steel Interior, 50 litre |
| MINIS/50/TDIG/SS/F | Dual-Purpose Benchtop Incubator/Oven Stainless Steel Interior, 50 litre with Fan |
| MINIS/75/TDIG/SS | Dual-Purpose Benchtop Incubator/Oven Stainless Steel Interior, 75 litre |
| MINIS/75/TDIG/SS/F | Dual-Purpose Benchtop Incubator/Oven Stainless Steel Interior, 75 litre with Fan |
| MINIS/100/TDIG/SS | Dual-Purpose Benchtop Incubator/Oven Stainless Steel Interior, 100 litre |
| MINIS/100/TDIG/SS/F | Dual-Purpose Benchtop Incubator/Oven Stainless Steel Interior, 100 litre with Fan |
| MINIS/125/TDIG/SS | Dual-Purpose Benchtop Incubator/Oven Stainless Steel Interior, 125 litre |
| MINIS/125/TDIG/SS/F | Dual-Purpose Benchtop Incubator/Oven Stainless Steel Interior, 125 litre with Fan |
| MINIS/150/TDIG/SS | Dual-Purpose Benchtop Incubator/Oven Stainless Steel Interior, 150 litre |
| MINIS/150/TDIG/SS/F | Dual-Purpose Benchtop Incubator/Oven Stainless Steel Interior, 150 litre with Fan |
| MINIS/200/F/TDIG/SS | Dual-Purpose Benchtop Incubator/Oven Stainless Steel Interior, 200 litre |
| DP/50/TDIG | Dual-Purpose Benchtop Incubator/Oven Standard Interior, 50 litre |
| DP/50/TDIG/F | Dual-Purpose Benchtop Incubator/Oven Standard Interior, 50 litre with Fan |
| DP/75/TDIG | Dual-Purpose Benchtop Incubator/Oven Standard Interior, 75 litre |
| DP/75/TDIG/F | Dual-Purpose Benchtop Incubator/Oven Standard Interior, 75 litre with Fan |
| DP/100/TDIG | Dual-Purpose Benchtop Incubator/Oven Standard Interior, 100 litre |
| DP/100/TDIG/F | Dual-Purpose Benchtop Incubator/Oven Standard Interior, 100 litre with Fan |
| DP/125/TDIG | Dual-Purpose Benchtop Incubator/Oven Standard Interior, 125 litre |
| DP/125/TDIG/F | Dual-Purpose Benchtop Incubator/Oven Standard Interior, 125 litre with Fan |
| DP/150/TDIG | Dual-Purpose Benchtop Incubator/Oven Standard Interior, 150 litre |
| DP/150/TDIG/F | Dual-Purpose Benchtop Incubator/Oven Standard Interior, 150 litre with Fan |
| DP/200/F/TDIG | Dual-Purpose Benchtop Incubator/Oven Standard Interior, 200 litre |
| DP/50/TDIG/SS | Dual-Purpose Benchtop Incubator/Oven Stainless Steel Interior, 50 litre |
| DP/50/TDIG/SS/F | Dual-Purpose Benchtop Incubator/Oven Stainless Steel Interior, 50 litre with Fan |
| DP/75/TDIG/SS | Dual-Purpose Benchtop Incubator/Oven Stainless Steel Interior, 75 litre |
| DP/75/TDIG/SS/F | Dual-Purpose Benchtop Incubator/Oven Stainless Steel Interior, 75 litre with Fan |
| DP/100/TDIG/SS | Dual-Purpose Benchtop Incubator/Oven Stainless Steel Interior, 100 litre |
| DP/100/TDIG/SS/F | Dual-Purpose Benchtop Incubator/Oven Stainless Steel Interior, 100 litre with Fan |
| DP/125/TDIG/SS | Dual-Purpose Benchtop Incubator/Oven Stainless Steel Interior, 125 litre |
| DP/125/TDIG/SS/F | Dual-Purpose Benchtop Incubator/Oven Stainless Steel Interior, 125 litre with Fan |
| DP/150/TDIG/SS | Dual-Purpose Benchtop Incubator/Oven Stainless Steel Interior, 150 litre |
| DP/150/TDIG/SS/F | Dual-Purpose Benchtop Incubator/Oven Stainless Steel Interior, 150 litre with Fan |
| DP/200/F/TDIG/SS | Dual-Purpose Benchtop Incubator/Oven Stainless Steel Interior, 200 litre |
