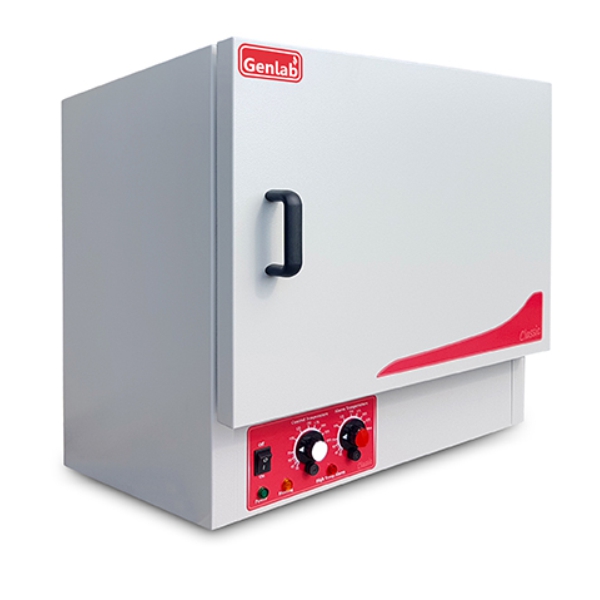

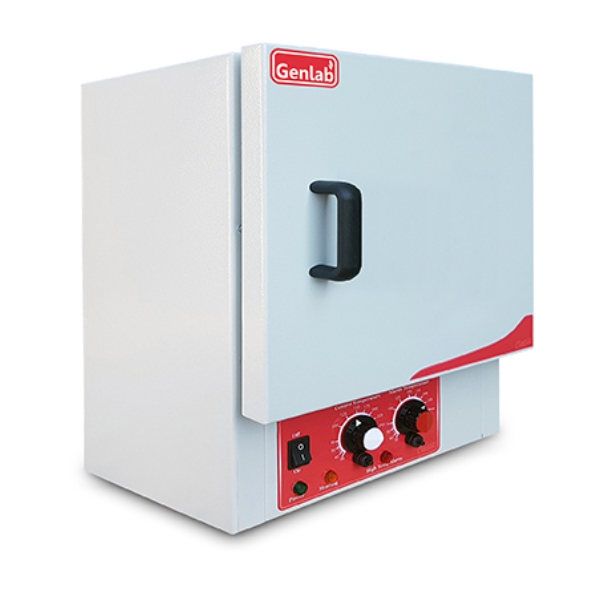

Genlab Classic Oven

The GENLAB Classic Range of ovens offers a selection of highly efficient, reliable and cost effective units to suit most drying, warming and general laboratory applications. The simple to use thermostat system is good for teaching purposes and the units can be built up to meet individual requirements.

Category:
WHERE TO BUY
GO BACK

    Product

    Sku

    Name (required)

    Country (required)

    Company

    Email (required)

    Message

    Genlab Classic Oven Design

    The exterior is constructed from sheet steel finished in an easy clean powder coated paint. The interior chamber is made from mild steel coated with aluminium (CLAD) with a stainless steel (SS) chamber available as an option.

    Fitted with fixed shelf runners and removable chrome plated wire grid shelves.

    Genlab Classic Oven Heating

    Heated by Incoloy sheathed elements, positioned below the chamber floor for natural convection units and fitted around the fan on the back wall of the chamber for mechanical convection units.

    Genlab Classic Oven Controls

    The control system comprises of a direct reading thermostat and overheat thermostat, both with calibrated scales and tamper proof locks. They also include a mains switch with indicator and heating and overheat indicators.

    Features

    • 7 sizes 6 to 100 litres
    • Temp range 40 °C  to 250 °C
    • Fluctuation +/- 0.75 °C
    • Easy to use thermostatic control
    • Independent overheat thermostat
    • Easy clean powder coated body

    Options

    Options

    • Fan assisted circulation (not available below 30L)
    • Stainless steel chamber
    • Access ports (25, 50, 75 or 100mm)
    • Traceable calibration certificate to National Standards
    • Bespoke stands and stacking kits
    • Extended warranty

    Specifications

    Code  Description  Temp Range, 0C  Capacity, L  N0 shelves  Shelf positions  Dims, WxDxH mm
    MINO/18  General Purpose Oven to 250C, classic range, Standard Interior  40 °C to 250 °C  18  2  2  260x270x260
    MINO/30/F  General Purpose Oven to 250C, classic range, Standard Interior, with Fan  40 °C to 250 °C  30  2  2  620x480x500
    MINO/40/F  General Purpose Oven to 250C, classic range, Standard Interior, with Fan  40 °C to 250 °C  40  2  3  620x480x580
    MINO/50/F  General Purpose Oven to 250C, classic range, Standard Interior, with Fan  40 °C to 250 °C  50  2  3  590x610x590
    MINO/75/F  General Purpose Oven to 250C, classic range, Standard Interior, with Fan  40 °C to 250 °C  75  2  3  610x720x590
    MINO/100/F  General Purpose Oven to 250C, classic range, Standard Interior, with Fan  40 °C to 250 °C  100  3  3  610x720x720
