Laboratory stirrer designed for simple stirring tasks for quantities up to 15 l (H2O). It automatically adjusts the speed through microprocessor controlled technology within the speed range of 0/30 – 2000 rpm. Continuous comparison of shaft speed to desired speed is maintained and variations are adjusted automatically. This guarantees a constant speed even with changes in viscosities of the sample.

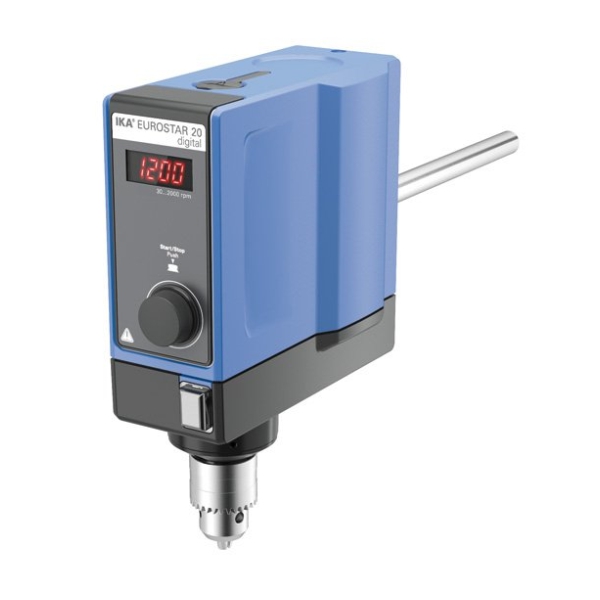

EUROSTAR 20 Digital Electronic Overhead Stirrer
- Digital speed display
- Infinitely adjustable speed
- Push-through agitator shafts
- Overload protection
- Short-term overload operation
- Slim casing
- Quiet operation
- Error code display
- A laboratory stirrer with safety circuits installed ensures automatic cut-off in an anti-stall or overload conditions.
Additional information
| Varient | UK, Europe |
|---|
Technical Data
| Stirring quantity max. per stirring position (H2O) | 15 l |
| Motor rating input | 70 W |
| Motor rating output | 42 W |
| Motor principle | Brushless DC |
| Speed display | LED |
| Speed range | 0/30 – 2000 rpm |
| Viscosity max. | 10000 mPas |
| Output max. at stirring shaft | 42 W |
| Permissible ON time | 100 % |
| Torque max. at stirring shaft | 20 Ncm |
| Speed control | stepless |
| Setting accuracy speed | 1 ±rpm |
| Deviation of speed measurement n > 300rpm | 1 ±% |
| Deviation of speed measurement n < 300rpm | 3 ±rpm |
| Stirring element fastening | chuck |
| Chuck range diameter | 0.5 – 10 mm |
| Hollow shaft, inner diameter | 11 mm |
| Hollow shaft (push-through – when stopped) | yes |
| Fastening on stand | extension arm |
| Extension arm diameter | 16 mm |
| Extension arm length | 220 mm |
| Speed control | electronic |
| Nominal torque | 0.2 Nm |
| Housing material | alu-cast coating / thermoplastic polymer |
| Dimensions (W x H x D) | 86 x 248 x 208 mm |
| Weight | 4.4 kg |
| Permissible ambient temperature | 5 – 40 °C |
| Permissible relative humidity | 80 % |
| Protection class according to DIN EN 60529 | IP 42 |
| Voltage | 230 / 115 / 100 V |
| Frequency | 50/60 Hz |
| Power input | 70 W |
Ordering information
| 0004442002 | EUROSTAR 20 digital |
| 0004442000 | EUROSTAR 20 digital, Euro Plug |
