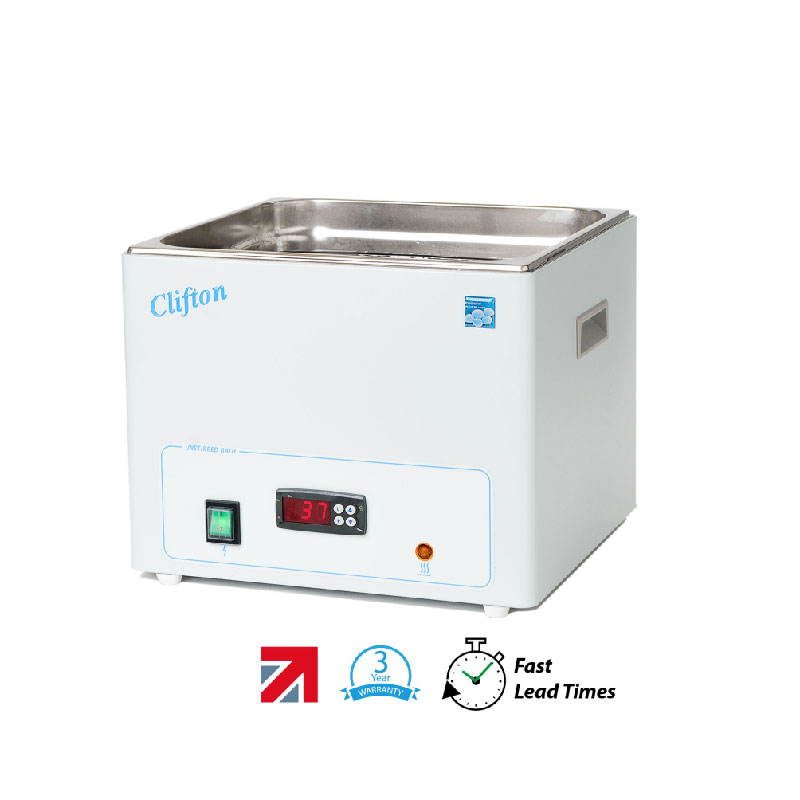

    The NE1D series, Clifton digital baths are designed for general use and are economically priced without compromising quality.

    Comprising of a high quality corrosion resistant stainless steel tank, with a bright clean finish housed in a durable paint finished outer case. Painted surfaces feature anti-bacterial finish with good chemical resistance. Fitted with side lifting handles for ease of transportation.

    Heaters and temperature sensor concealed under the tank providing a clutter free working area easy to wipe clean.

    Supplied with a removable sturdy low height stainless steel perforated shelf, for even heat distribution. The shelf provides a deeper volume of water, for standing containers and accessory test tube racks in the bath.

    Information

    Safety Features

    • Thermal cut-out fitted in the heater.
    • IP-rated clear booted on/off mains switch.
    • Bath fitted with nonslip rubber feet.

    Controls

    • Simple digital LED controller for setting temperature with 1°C increments.
    • Temperatures can be easily and rapidly set with the push button, wipe clean control panel.
    • Temperature setting is retained in memory, even after ‘power off’.
    • Illuminated on/off switch and heater indication lamp.
    • We verify the performance of every bath calibrating its controls and water temperature for consistent temperature control in use.

    Features and Benefits

    1. Clifton unstirred water baths are designed for immersion of flasks/bottles/racks in a highly stable temperature environment throughout the water bath.
    2. The shelf in the stainless steel tank provides a stable support for flasks/bottles/racks that can be removed for cleaning. The shelf is a low height design maximizing the working height in the bath, either needing less water when compared with traditional water baths or allowing tall containers or vessels to be immersed to a greater working depth. With lower water levels comes the benefit reduced heat up times and energy saving.
    3. Three-year warranty and comprehensive customer support.
    4. Broad range of accessories available to suit wide range of applications.
    5. Before leaving our factory every water bath is identified with a unique serial number and undergoes a factory calibration adjusting control to known traceable value, electrically tested for safety at final inspection and a test certificate enclosed in rear of the instruction book.
    6. Painted surfaces feature “anti-bacterial technology” which inhibits bacterial growth, improving hygiene requirements as demanded by clinical and laboratory environments. The Clifton range features easy-to-clean surfaces and finishes that are resistant to routine and efficient disinfections. The efficacy of the finish is maintained over time, as the anti-bacterial agent is integral within the paint finish

    Product Information



    Product Code  Dimensions Capacity Temp Range Temp Control Sensitivity Uniformity Heater Power (220-240V) Voltage Packed Weight (kg) Availability
    NE1D-4 External: 332w x 185d x 290h mm

    Internal: 300w x 150d x 150h mm

    Water level maximum: 130mmshelf fitted working depth 115mm

    Packed: 38 x 23 x 29 cm

    4 Litres Ambient +5°C – 99°C Digital, LED display showing actual or set temperature, resolution 1°C ±0.2°C ±0.1°C 400w 120V or 230V models available 50-60Hz 4.7 kg For dispatch next week
    NE1D-8 External: 332w x 270d x 290h mm

    Internal: 300w x 240d x 150h mm

    Water level maximum: 130mm shelf fitted working depth 115mm

    Packed: 38 x 23 x 29 cm

    8 Litres Ambient +5°C – 99°C Digital, LED display showing actual or set temperature, resolution 1°C ±0.2°C ±0.1°C 800W 120V or 230V models available 50-60Hz 7 kg For dispatch next week
    NE1D-14 External: 361w x 332d x 290h mm

    Internal: 325w x 300d x 150h mm

    Water level maximum: 130mm shelf fitted working depth 115mm

    Packed: 38 x 23 x 29 cm

    14 Litres Ambient +5°C – 99°C Digital, LED display showing actual or set temperature, resolution 1°C ±0.2°C ±0.1°C 1000W 120V or 230V models available 50-60Hz 7.6 kg For dispatch next week
    NE1D-22 External: 538w x 332d x 290h mm

    Internal: 500w x 300d x 150h mm

    Water level maximum: 130mm shelf fitted working depth 115mm

    Packed: 62 x 41 x 37 cm

    22 Litres Ambient +5°C – 99°C Digital, LED display showing actual or set temperature, resolution 1°C ±0.2°C ±0.1°C 1500W 120V or 230V models available 50-60Hz 10.5 kg For dispatch next week
