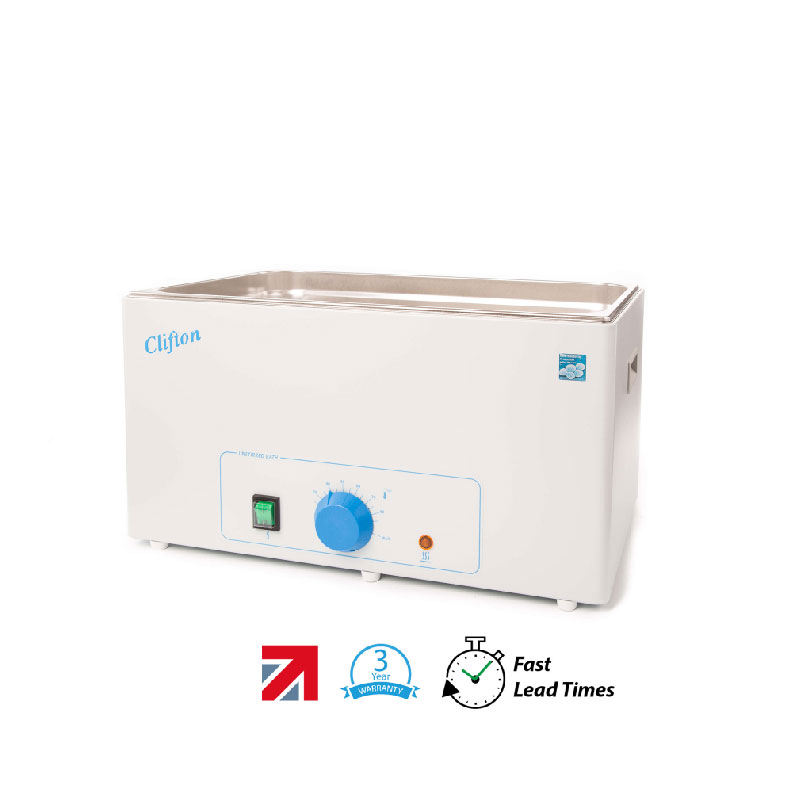

The NE1 series, Thermostatic Clifton analogue baths are designed for general use and are economically priced without compromising quality.
Comprising of a high quality corrosion resistant stainless steel tank, with a bright clean finish housed in a durable paint finished outer case. Painted surfaces feature anti-bacterial finish with good chemical resistance. Fitted with side lifting handles for ease of transportation.
Heaters and temperature sensor concealed under the tank providing a clutter free working area easy to wipe clean.
Supplied with a removable sturdy low height stainless steel perforated shelf, providing a taller volume of water, for standing containers and accessory test tube racks in the bath.
Information
Safety Features
Thermal cut out fitted in the heater. IP rated clear booted on/off mains switch. Bath fitted with non-slip rubber feet.
Controls
Easy to use analogue dial pointer for setting temperature, graduated in 5°C divisions.
Illuminated on/off switch and heater indication lamp.
We verify the performance of every bath calibrating its controls and water temperature at 45°C for consistent temperature control in use.
Features and Benefits
- Clifton unstirred water baths are designed for immersion of flasks/bottles/racks in a highly stable temperature environment throughout the water bath.
- The shelf in the stainless steel tank provides stable support for flasks/bottles/racks that can be removed for cleaning. The shelf is a low-height design that maximizes the working height in the bath, either needing less water than traditional water baths or allowing tall containers or vessels to be immersed to a greater working depth. Lower water levels also benefit from reduced heat-up times and energy savings.
- Three-year warranty and comprehensive customer support.
- A broad range of accessories is available to suit a wide range of applications.
- Before leaving our factory, every water bath is identified with a unique serial number and undergoes a factory calibration adjusting control to known traceable value, electrically tested for safety at final inspection and a test certificate enclosed in the rear of the instruction book.
- Painted surfaces feature “anti-bacterial technology,” which inhibits bacterial growth, improving hygiene requirements as demanded by clinical and laboratory environments. The Clifton range features easy-to-clean surfaces and finishes that are resistant to routine and efficient disinfections. The efficacy of the finish is maintained over time, as the anti-bacterial agent is integral to the paint finish.
Product Information
| Product Code | Dimensions | Capacity | Temp Range | Temp Control | Sensitivity | Uniformity | Heater Power (220-240V) | Voltage | Packed Weight (kg) | Availability |
| NE1-2.5 | External: 270 w x 190d x 240h mm
Internal: 230w x 130d x 150h mm Water level maximum: 130mm shelf fitted working depth 115mm Water level minimum: 55mm shelf fitted working depth 40mm Packed: 25 x 13 x 39 cm |
Nominal Tank Capacity: 2.5 Litres | Ambient + 5°C – 100°C will operate at 100°C but not designed for continuous boiling, we recommend NE1B Boiling Baths | analogue dial pointer graduated in 5°C divisions | ±0.5°C | ±0.5°C | 250W | 230V 50-60Hz | 4.7kg | For dispatch next week |
| NE1-4 | External: 332w x 185d x 290h mm Internal: 300w x 150d x 150h mm Water level maximum: 130mm shelf fitted working depth 115mm
Water level minimum: 55mm shelf fitted working depth 40mm Packed: 38 x 23 x 29cm |
Nominal Tank Capacity: 4 Litres Brimful Capacity: 5.5 Litres |
Ambient +5°C – 100°C will operate at 100°C but not designed for continuous boiling, we recommend NE1B Boiling Baths | analogue dial pointer graduated in 5°C divisions | ±0.25°C | ±0.1°C | 400 W | 120V or 230V models available 50-60Hz | 4.7 kg | For dispatch next week |
| NE1-8 | External: 332w x 270d x 290h mm
Internal: 300w x 240d x 150h mm Water level maximum: 130mm shelf fitted working depth 115mm Water level minimum: 55mm shelf fitted working depth 40mm Packed: 45 x 41 x 32cm |
Nominal Tank Capacity: 8 Litres Brimful Capacity: 9.5 Litres |
Ambient +5°C – 100°C will operate at 100°C but not designed for continuous boiling, we recommend NE1B boiling baths | Analogue dial pointer graduated in 5°C divisions | ±0.25°C | ±0.1°C | 800W | 120V or 230V models available 50-60Hz | 6.8 kg | For dispatch next week |
| NE1-14 | External: 361w x 332d x 290h mm
Internal: 325w x 300d x 150h mm Water level maximum: 130mm shelf fitted working depth 115mm Water level minimum: 55mm shelf fitted working depth 40mm Packed: 45 x 41 x 32 cm |
Nominal Tank Capacity: 14 Litres | Ambient +5°C – 100°C will operate at 100°C but not designed for continuous boiling, we recommend NE1B boiling baths | analogue dial pointer graduated in 5°C divisions | ±0.25°C | ±0.1°C | 1000 W | 120V or 230V models available 50-60Hz | 7.6 kg | For dispatch next week |
| NE1-22 | External: 538w x 332d x 290h mm
Internal: 500w x 300d x 150h mm Water level maximum: 130mm shelf fitted working depth 115mm Water level minimum: 55mm shelf fitted working depth 40mm Packed: 62 x 41 x 37cm |
Nominal Tank Capacity: 22 Litres | Ambient +5°C – 100°C will operate at 100°C but not designed for continuous boiling, we recommend NE1B boiling baths | analogue dial pointer graduated in 5°C divisions | ±0.25°C | ±0.1°C | 1500 W | 120V or 230V models available 50-60Hz | 10.5 kg | For dispatch next week |
| NE1-28 | External: 538w x 332d x 290hmm
Internal: 500w x 300d x 200h mm Water level maximum: 180mm shelf fitted working depth 165mm Water level minimum: 55mm shelf fitted working depth 40mm Packed: 62 x 41 x 37cm |
Nominal Tank Capacity: 28 Litres | Ambient +5°C – 100°C will operate at 100°C but not designed for continuous boiling, we recommend NE1B boiling baths | analogue dial pointer graduated in 5°C divisions | ±0.25°C | ±0.1°C | 1500 W | 120V or 230V models available 50-60Hz | 12.5 kg | For dispatch next week |
| NE1-56 | External: 660w x 540d x 290h mm
Internal: 620w x 500d x 200h mm Water level maximum: 180mm shelf fitted working depth 165mm Water level minimum: 55mm shelf fitted working depth 40mm Packed: 80 x 67 x 35cm |
Nominal Tank Capacity: 56 Litres | Ambient +5°C – 100°C will operate at 100°C but not designed for continuous boiling, we recommend NE1B boiling baths | analogue dial pointer graduated in 5°C divisions | ±0.25°C | ±0.1°C | 2500W | 120V or 230V models available 50-60Hz | 18.3 kg | For dispatch next week |
