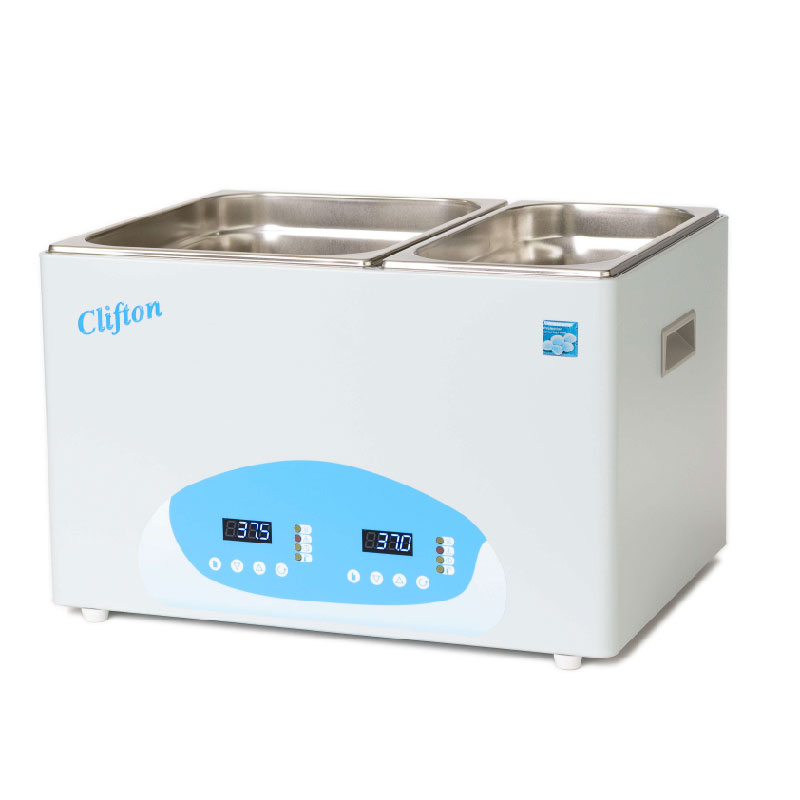

NE2D DuoBaths™ Advanced Digital Water Baths

ENQUIRE ABOUT BUYING THIS PRODUCT

Duobath^TM two independently controlled unstirred water baths in one space-saving unit.

Typical applications include: eliminating problems associated with water level/disturbance when placing and removing containers of different sizes or routine operations involving two different temperature and immersed depths such as keeping media molten in one chamber and incubation of samples in the other.

Three shelves are supplied with each Duobath^TM, two at conventional low height and a taller 100mm version designed to accommodate small media vessels/bijou style bottles in a shallow depth. Using the conventional height in both chambers gives the benefit of two standard baths in one space saving unit.

Featuring precision temperature control with an option to enable a run back timer. Actual water bath liquid temperature always displayed for complete assurance.

Every water bath undergoes a factory calibration at two reference temperatures validating each tank for total confidence in use.

Comprising of a high quality corrosion resistant stainless steel tank, with a bright clean finish housed in a durable paint finished outer case.

Heaters and temperature sensor concealed under the tank providing a clutter free working area easy to wipe clean.

Product Information

Product Code

Dimensions

4 litre, tank 1

4 litre, tank 2

Temp Range

Temp alarm

Temp control

Temperature control and run back timer

Sensitivity

Uniformity

Cross Tank Sensitivity

Heater Power (220-240V)

Voltage

Packed Weight (kg)

NE2D-4/4

External: 361w x332d x290h mm
Packed: 47 x 44 x 58 cm

Internal: 150w x300d x150h mm

Water level: Maximum 130mm Shallow shelf fitted, working depth 115mm

Capacity: 4 litres

Internal: 150w x300d x150h mm

Water level: Maximum 130mm Shallow shelf fitted, working depth 115mm. Tall shelf fitted, depth 20mm.

Capacity: 4 litres

Ambient +5°C – 99°C

Under/over temperature alarm is automatically set 4˚C above-set point.

PID Digital, LED display showing actual or set temperature, resolution 0.1°C Individual tank control

Indicator and end message variable, 00:01 to 99:59 [hh:mm], activates at set temperature. Individual tank control

±0.2°C

±0.1°C

60°C tank effect on 37°C tank +0.1°C

800W

230V 50-60Hz

9.8 kg

NE2D-4/8

External: 450w x332d x290h mm

Packed: 47 x 44 58 cm

Internal: 150w x300d x150h mm Water level: Maximum 130mm Shallow shelf fitted, working depth 115mm. Tall shelf fitted, depth 20mm. Capacity: 4 litres

Internal : 240w x300d x150h mm Water level: Maximum 130mm Shallow shelf fitted, working depth 115mm Capapcity: 8 litres

Ambient +5°C – 99°C

Under/over temperature alarm is automatically set 4˚C above set-point.Individual tank control

PID Digital, LED display showing actual or set temperature, resolution 0.1°C.Individual tank control

Indicator and end message variable, 00:01 to 99:59 [hh:mm], activates at set temperature.Individual tank control

±0.2°C

±0.1°C

60°C tank effect on 37°C tank +0.1°C.

1200W

230V 50-60Hz

11.8 kg

Safety Features

Thermal cut out fitted in the heater. IP rated clear booted on/off power switch. Bath fitted with nonslip rubber feet.

The under/over temperature alarm is automatically set 4˚C above and 4˚C below set temperature. When in alarm condition the indicator illuminates and actual bath temperature is shown, if bath is over temperature heating is switched off. Once liquid temperature has fallen or risen above/below the alarm setting the indicator clears and actual bath temperature is shown, control resumes.

Controls

Featuring bold LED display of measured temperatures in real-time, in increments of ±0.1°C, using precision PID temperature control. Settings retained even after turning the unit off.

Easy to use splash proof controls, touch keypads for setting temperature values with indicators for heating and over temperature alarm.

Features auto setting over and under temperature alarm protecting samples at set temperature.

Should only one tank be required, a stand by feature can be activated for the chamber not in use.

Water baths are pre-calibrated at two seperate temperatures for consistent accuracy. IP rated clear booted on/off power switch. Bath fitted with nonslip rubber feet.

Features and Benefits

1.Clifton DuothbathTM water baths are designed for immersion of flasks/bottles/racks in a highly stable temperature environment throughout the water bath. They have been designed to have two chambers, in one easy, space saving unit.

2. Suitable when using two different temperatures at the same time.

3. Each bath comes complete with two removable Clifton “low” height stainless steel perforated shelves and an additional 100mm tall raised shelf.

4. Features precision temperature control with an option to enable a run back timer

5. Auto setting over and under temperature alarm protecting samples at set temperature.

6. Three-year warranty and comprehensive customer support.

7. Full use can be made of the bath to provide maximum working area

8. To verify the performance of the temperature control system every unit undergoes a factory calibration adjusting control to known traceable values.

9. Painted surfaces and control surfaces feature “anti-bacterial technology” which inhibits bacterial growth, improving hygiene requirements as demanded by clinical and laboratory environments. The Clifton range features easy to clean surfaces and finishes that are resistant to routine and efficient disinfections. The efficacy of the finish is maintained over time, as the anti-bacterial agent is integral within the paint finish.
